USER GUIDE

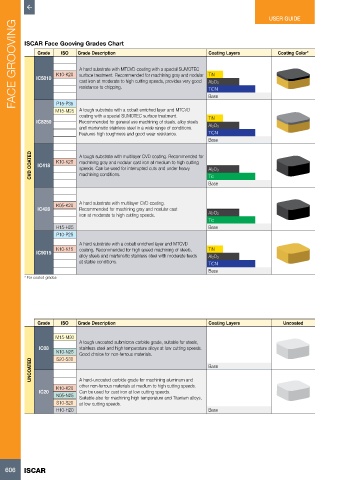

      FACE GROOVING  ISCAR Face Gooving Grades Chart                      Coating Layers           Coating Color*





              Grade
                            Grade Description
                      ISO
                             A hard substrate with MTCVD coating with a special SUMOTEC
                     K10-K20
                             surface treatment. Recommended for machining gray and nodular  TiN
              IC5010
                             cast iron at moderate to high cutting speeds, provides very good
                                                                          Al2O3
                             resistance to chipping.
                                                                          Base
                     P15-P35
                     M15-M25  A tough substrate with a cobalt enriched layer and MTCVD   TiCN
                             coating with a special SUMOTEC surface treatment.   TiN
              IC8250         Recommended for general use machining of steels, alloy steels
                             and martensitic stainless steel in a wide range of conditions.   Al2O3
                             Features high toughness and good wear resistance.  TiCN
                                                                          Base

            CVD COATED  IC418  K10-K25  A tough substrate with multilayer CVD coating. Recommended for   Al2O3
                             machining gray and nodular cast iron at medium to high cutting
                             speeds. Can be used for interrupted cuts and under heavy
                             machining conditions.
                                                                          Tic
                                                                          Base


                     K05-K20  A hard substrate with multilayer CVD coating.
              IC428          Recommended for machining gray and nodular cast
                             iron at moderate to high cutting speeds.     Al2O3
                                                                          Tic
                     H15-H25                                              Base
                     P10-P25
                             A hard substrate with a cobalt enriched layer and MTCVD
                     K10-K15  coating. Recommended for high speed machining of steels,    TiN
              IC9015
                             alloy steels and martensitic stainless steel with moderate feeds    Al2O3
                             at stable conditions.                        TiCN
                                                                          Base
          * For coated grades








              Grade   ISO   Grade Description                             Coating Layers            Uncoated

                     M15-M30
                             A tough uncoated submicron carbide grade, suitable for steels,
               IC08          stainless steel and high temperature alloys at low cutting speeds.
                     N10-N25  Good choice for non-ferrous materials.
                     S20-S30
            UNCOATED                                                      Base



                             other non-ferrous materials at medium to high cutting speeds.
                     K10-K20  A hard-uncoated carbide grade for machining aluminum and
               IC20          Can be used for cast iron at low cutting speeds.
                     N05-N25  Suitable also for machining high temperature and Titanium alloys,
                     S10-S20  at low cutting speeds.
                     H10-H20                                              Base
