USER GUIDE

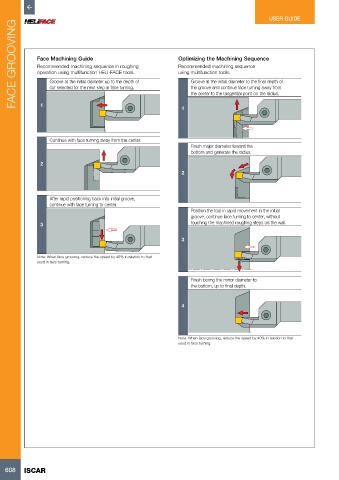

      FACE GROOVING  Face Machining Guide                       Optimizing the Machining Sequence








                                                                Recommended machining sequence
              Recommended machining sequence in roughing
                                                                using multifunction tools.
              operation using multifunction HELI-FACE tools.
                  Groove at the initial diameter up to the depth of
                                                                    Groove at the initial diameter to the final depth of
                  cut selected for the next step in face turning.
                                                                    the groove and continue face turning away from
                                                                    the center to the tangential point on the radius.
               1





                  Continue with face turning away from the center.  1
                                                                    Finish major diameter toward the
                                                                    bottom and generate the radius.
               2
                                                                 2




                  After rapid positioning back into initial groove,
                  continue with face turning to center.
                                                                    Position the tool in rapid movement in the initial
                                                                    groove, continue face turning to center, without
               3                                                    touching the machined roughing steps on the wall.


                                                                 3


              Note: When face grooving, reduce the speed by 40% in relation to that
              used in face turning.


                                                                    Finish boring the minor diameter to
                                                                    the bottom, up to final depth.


                                                                 4






                                                                Note: When face grooving, reduce the speed by 40% in relation to that
                                                                used in face turning.
