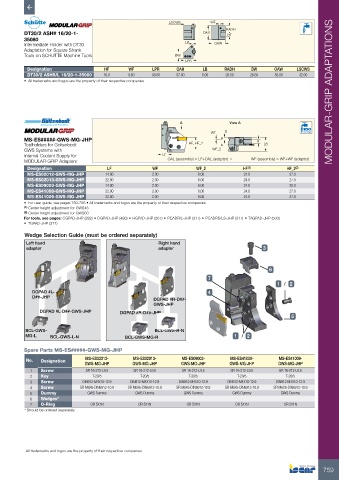

LSCWS WF RADH
DT30/2 ASH# 16/20-1- OAH HF
35080
Intermediate Holder with DT30 LB OAW
Adaptation for Square Shank
Tools on SCHUTTE Machine Tools BW
LPR
Designation HF WF LPR OAH LB RADH BW OAW LSCWS
DT30/2 ASHR/L 16/20-1-35080 16.0 9.50 38.00 57.00 5.00 28.50 26.50 55.00 32.00
• All trademarks and logos are the property of their respective companies

MODULAR-GRIP ADAPTATIONS

A View A

WF 6 150
Bar Max
MS-ES#####-GWS-MG-JHP 8
Toolholders for Goltenbodt HF, HF_2 28
GWS Systems with WF_2
Internal Coolant Supply for LF
MODULAR-GRIP Adapters OAL (assembly) = LF+OAL (adapter) • WF (assembly) = WF+WF (adapter)
Designation LF WF WF_2 HF (1) HF_2 (2)
MS-ES02012-GWS-MG-JHP 14.00 2.00 6.00 24.0 27.0
MS-ES02013-GWS-MG-JHP 22.00 2.00 6.00 24.0 27.0
MS-ES09003-GWS-MG-JHP 14.00 2.00 6.00 24.0 30.0
MS-ES41008-GWS-MG-JHP 22.00 2.00 6.00 24.0 27.0
MS-ES41009-GWS-MG-JHP 22.00 2.00 6.00 24.0 27.0
• For user guide, see pages 750-756 • All trademarks and logos are the property of their respective companies
(1) Center height adjustment for GWS43
(2) Center height adjustment for GWS60
For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500)
• TGPAD-JHP (271)

Wedge Selection Guide (must be ordered separately)
Left hand Right hand
adapter adapter 3

6
7
1 / 2
DGPAD #L- 4
D##-JHP
DGPAD #R-D##-
GWS-JHP
DGPAD #L-D##-GWS-JHP DGPAD #R-D##-JHP
5

BCL-GWS- BCL-GWS-R-N
MG-L BCL-GWS-L-N BCL-GWS-MG-R 1 / 2

Spare Parts MS-ES#####-GWS-MG-JHP
No. Designation MS-ES02012- MS-ES02013- MS-ES09003- MS-ES41008- MS-ES41009-
GWS-MG-JHP GWS-MG-JHP GWS-MG-JHP GWS-MG-JHP GWS-MG-JHP
1 Screw SR 16-212-L9.5 SR 16-212-L9.5 SR 16-212-L9.5 SR 16-212-L9.5 SR 16-212-L9.5
2 Key T-20/5 T-20/5 T-20/5 T-20/5 T-20/5
3 Screw DIN912-M4X10-12.9 DIN912-M4X10-12.9 DIN912-M4X10-12.9 DIN912-M4X10-12.9 DIN912-M4X10-12.9
4 Screw SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9 SR M6X6-DIN6912-10.9
5 Dummy GWS Dummy GWS Dummy GWS Dummy GWS Dummy GWS Dummy
6 Wedges*
7 O-Ring OR 5X1N OR 5X1N OR 5X1N OR 5X1N OR 5X1N
* Should be ordered separately

All trademarks and logos are the property of their respective companies
