USER GUIDE

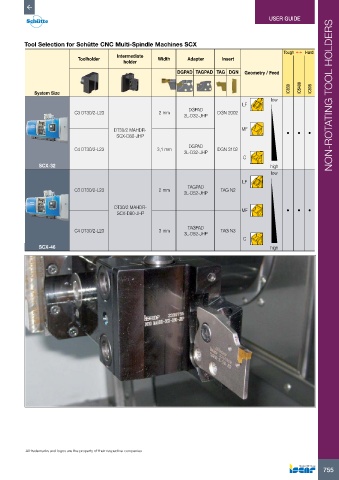

Tool Selection for Schütte CNC Multi-Spindle Machines SCX
Tough 1 Hard
Intermediate
Toolholder Width Adapter Insert
holder
DGPAD TAGPAD TAG DGN Geometry / Feed

IC830 IC5400 IC808
System Size NON-ROTATING TOOL HOLDERS
low
LF
DGPAD
C3 DT30/2-L23 2 mm DGN 2002
2L-D32-JHP

DT30/2 MAHDR- MF • • •
SCX-D80-JHP
DGPAD
C4 DT30/2-L23 3,1 mm DGN 3102
3L-D32-JHP
C
SCX-32 high
low
LF
TAGPAD
C3 DT30/2-L23 2 mm TAG N2
2L-D52-JHP

DT30/2 MAHDR- • • •
SCX-D80-JHP MF

TAGPAD
C4 DT30/2-L23 3 mm TAG N3
3L-D52-JHP
C
SCX-46 high
