· USER GUIDE
NON-ROTATING TOOL HOLDERS

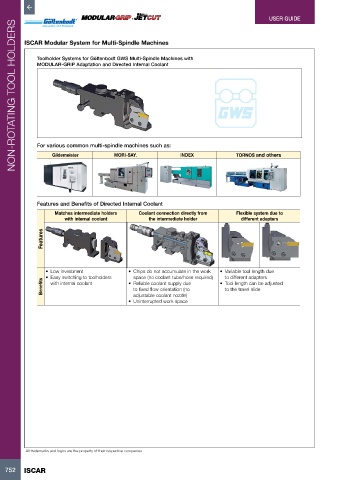

ISCAR Modular System for Multi-Spindle Machines

Toolholder Systems for Göltenbodt GWS Multi-Spindle Machines with
MODULAR-GRIP Adaptation and Directed Internal Coolant

For various common multi-spindle machines such as:
Gildemeister MORI-SAY. INDEX TORNOS and others

Features and Benefits of Directed Internal Coolant
Matches intermediate holders Coolant connection directly from Flexible system due to
with internal coolant the intermediate holder different adapters

Features

• Low investment • Chips do not accumulate in the work • Variable tool length due
to different adapters
space (no coolant tube/hose required)
Benefits • Easy switching to toolholders • Reliable coolant supply due • Tool length can be adjusted
with internal coolant
to fixed flow orientation (no
to the travel slide
adjustable coolant nozzle)
• Uninterrupted work space

All trademarks and logos are the property of their respective companies
