· USER GUIDE

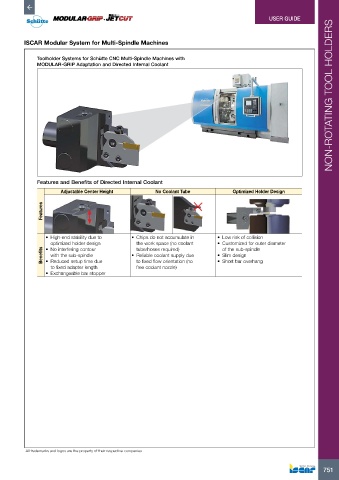

ISCAR Modular System for Multi-Spindle Machines

Toolholder Systems for Schütte CNC Multi-Spindle Machines with
MODULAR-GRIP Adaptation and Directed Internal Coolant NON-ROTATING TOOL HOLDERS

Features and Benefits of Directed Internal Coolant
Adjustable Center Height No Coolant Tube Optimized Holder Design

Features

• High-end stability due to • Chips do not accumulate in • Low risk of collision
optimized holder design the work space (no coolant • Customized for outer diameter
tube/hoses required)
• No interfering contour
of the sub-spindle
Benefits • Reduced setup time due • Reliable coolant supply due • Slim design
with the sub-spindle
• Short bar overhang
to fixed flow orientation (no
to fixed adapter length free coolant nozzle)
• Exchangeable bar stopper

All trademarks and logos are the property of their respective companies
