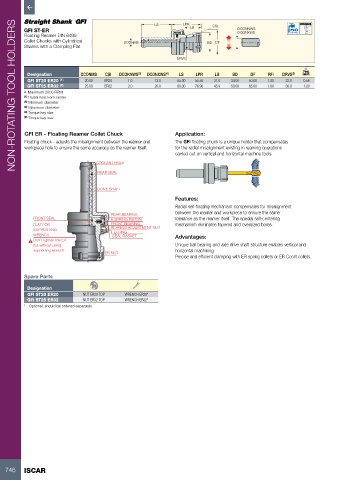

Page 748 - ISCAR(TURNING-CATALOG-42-2022)
P. 748

NON-ROTATING TOOL HOLDERS
                                                       LS        LPR LB     CSI                           58-60 HRc
          GFI ST-ER                                                                 DCONNWS            50
                                                                                    DCONXWS
          Floating Reamer DIN 6499                                                                     Bar Max
          Collet Chucks with Cylindrical    DCONMS                        BD  DF
          Shanks with a Clamping Flat
                                                               DRVS


           Designation       DCONMS   CSI  DCONNWS (3)  DCONXWS (4)  LS  LPR  LB   BD    DF    RFl  DRVS (5)  kg
           GFI ST20 ER20  (1)  20.00  ER20    1.0      13.0    65.00  55.50  31.0  34.00  50.00  1.00  22.0  0.56
           GFI ST25 ER32  (2)  25.00  ER32    2.0      20.0    80.00  76.90  45.9  50.00  65.00  1.60  36.0  1.20
          •  Maximum 2000 RPM!
          (1)  Radial float from center
          (2)  Minimum diameter
          (3)  Maximum diameter
          (4)  Torque key size
          (5)  Torque key size


          GFI ER - Floating Reamer Collet Chuck                Application:
          Floating chuck - adjusts the misalignment between the reamer and   The GFI floating chuck is a unique holder that compensates
          workpiece hole to ensure the same accuracy as the reamer itself.  for the radial misalignment existing in reaming operations
                                                               carried out on vertical and horizontal machine tools.
                                   COOLANT HOLE
                                   REAR SEAL


                                   DRIVE SHAFT
                                                               Features:
                                                               Radial self-floating mechanism compensates for misalignment
                                                               between the reamer and workpiece to ensure the same
                                        REAR BEARING
             FRONT SEAL                 6 SPRING PISTON        tolerance as the reamer itself. The special self-centering
             FLAT FOR                   FRONT BEARING          mechanism eliminates tapered and oversized bores.
             SUPPORTING                 BEARING ADJUSTMENT NUT
                                         O-RING
             WRENCH                      SEAL GASKET           Advantages:
             Don’t tighten the ER
             nut without using                                 Unique ball bearing and axle drive shaft structure enables vertical and
             supporting wrench                                 horizontal machining.
                                      ER NUT
                                                               Precise and efficient clamping with ER spring collets or ER Coolit collets.

          Spare Parts
           Designation
           GFI ST20 ER20      NUT ER20 TOP   WRENCH ER20*
           GFI ST25 ER32      NUT ER32 TOP   WRENCH ER32*
          *  Optional, should be ordered separately
