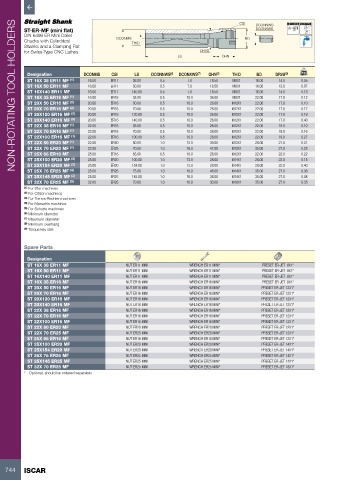

Page 746 - ISCAR(TURNING-CATALOG-42-2022)

CSI DCONNWS A 0.005 A 58-60 HRc
NON-ROTATING TOOL HOLDERS
ST-ER-MF (mini flat) DCONXWS
DIN 6499 ER Mini Collet DCONMS
Chucks with Cylindrical THID BD
Shanks and a Clamping Flat
for Swiss-Type CNC Lathes DRVS
LS OHN

Designation DCONMS CSI LS DCONNWS (6) DCONXWS (7) OHN (8) THID BD DRVS (9) kg
ST 16X 38 ER11 MF (1) 16.00 ER11 38.00 0.5 7.0 18.50 M8X1 16.00 14.0 0.05
ST 16X 50 ER11 MF 16.00 ER11 50.00 0.5 7.0 18.50 M8X1 16.00 13.0 0.07
ST 16X140 ER11 MF 16.00 ER11 140.00 0.5 7.0 18.50 M8X1 16.00 14.0 0.18
ST 16X 35 ER16 MF (1) 16.00 ER16 35.00 0.5 10.0 36.00 M8X1 22.00 17.0 0.12
ST 20X 50 ER16 MF (2) 20.00 ER16 50.00 0.5 10.0 26.00 M12X1 22.00 17.0 0.10
ST 20X 70 ER16 MF (2) 20.00 ER16 70.00 0.5 10.0 26.00 M12X1 22.00 17.0 0.17
ST 20X120 ER16 MF (2) 20.00 ER16 120.00 0.5 10.0 26.00 M12X1 22.00 17.0 0.19
ST 20X140 ER16 MF (2) 20.00 ER16 140.00 0.5 10.0 26.00 M12X1 22.00 17.0 0.40
ST 22X 38 ER16 MF (1) 22.00 ER16 38.00 0.5 10.0 26.00 M12X1 22.00 19.0 0.10
ST 22X 70 ER16 MF (1) 22.00 ER16 70.00 0.5 10.0 26.00 M12X1 22.00 19.0 0.16
ST 22X100 ER16 MF (1) 22.00 ER16 100.00 0.5 10.0 28.00 M12X1 22.00 19.0 0.27
ST 22X 80 ER20 MF (1) 22.00 ER20 80.00 1.0 13.0 39.00 M12X1 28.00 21.0 0.21
ST 22X 70 ER25 MF (1) 22.00 ER25 70.00 1.0 16.0 47.00 M12X1 35.00 27.0 0.25
ST 25X 65 ER16 MF 25.00 ER16 65.00 0.5 10.0 28.00 M12X1 22.00 22.0 0.22
ST 25X100 ER20 MF (3) 25.00 ER20 100.00 1.0 13.0 28.00 M14X1 28.00 22.0 0.15
ST 25X154 ER20 MF (3) 25.00 ER20 154.00 1.0 13.0 28.00 M14X1 28.00 22.0 0.40
ST 25X 75 ER25 MF (4) 25.00 ER25 75.00 1.0 16.0 48.00 M14X1 35.00 27.0 0.36
ST 25X145 ER25 MF (3) 25.00 ER25 145.00 1.0 16.0 36.00 M14X1 35.00 27.0 0.08
ST 32X 70 ER25 MF (5) 32.00 ER25 70.00 1.0 16.0 30.00 M18X1 35.00 27.0 0.35
(1) For Star machines
(2) For Citizen machines
(3) For Tornos-Bechler machines
(4) For Manurhin machines
(5) For Schutte machines
(6) Minimum diameter
(7) Maximum diameter
(8) Minimum overhang
(9) Torque key size

Spare Parts
Designation
ST 16X 38 ER11 MF NUT ER11 MINI WRENCH ER11 MINI* PRESET ER-JET 8X1*
ST 16X 50 ER11 MF NUT ER11 MINI WRENCH ER11 MINI* PRESET ER-JET 8X1*
ST 16X140 ER11 MF NUT ER11 MINI WRENCH ER11 MINI* PRESET ER-JET 8X1*
ST 16X 35 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 8X1*
ST 20X 50 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 20X 70 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 20X120 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 20X140 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 22X 38 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 22X 70 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 22X100 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 22X 80 ER20 MF NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1*
ST 22X 70 ER25 MF NUT ER25 MINI WRENCH ER25 MINI* PRESET ER-JET 12X1*
ST 25X 65 ER16 MF NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1*
ST 25X100 ER20 MF NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 14X1*
ST 25X154 ER20 MF NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 14X1*
ST 25X 75 ER25 MF NUT ER25 MINI WRENCH ER25 MINI* PRESET ER-JET 14X1*
ST 25X145 ER25 MF NUT ER25 MINI WRENCH ER25 MINI* PRESET ER-JET 14X1*
ST 32X 70 ER25 MF NUT ER25 MINI WRENCH ER25 MINI* PRESET ER-JET 18X1*
* Optional, should be ordered separately
