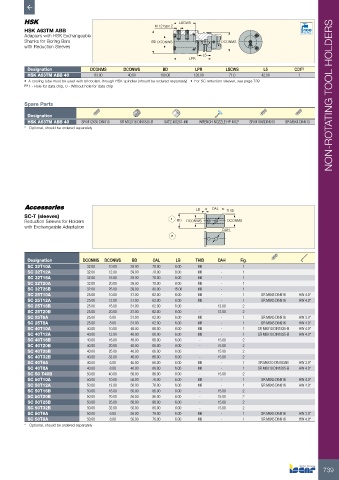

Page 741 - ISCAR(TURNING-CATALOG-42-2022)

LSCWS
HSK A63TM ABB M 12 type 2 Bar Max
Adapters with HSK Exchangeable
Shanks for Boring Bars BD DCONWS DCONMS
with Reduction Sleeves
L5
LPR
Designation DCONMS DCONWS BD LPR LSCWS L5 CDI (1)
HSK A63TM ABB 40 63.00 40.00 100.00 120.00 71.0 42.00 1
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • For SC reduction sleeves, see page 739
(1) 1 - Hole for data chip, 0 - Without hole for data chip

NON-ROTATING TOOL HOLDERS
Spare Parts

Designation
HSK A63TM ABB 40 SR M12X30 DIN915 SR M12X16 DIN1835-B SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SR M10X6DIN913 SR M5X4 DIN913
* Optional, should be ordered separately

LB OAL THID

SC-T (sleeves)
Reduction Sleeves for Holders 1 BD DCONWS DCONMS
with Exchangeable Adaptation
DAH
2

Designation DCONMS DCONWS BD OAL LB THID DAH Fig.
SC 32T10A 32.00 10.00 39.00 70.00 8.00 M6 - 1
SC 32T12A 32.00 12.00 39.00 70.00 8.00 M6 - 1
SC 32T16A 32.00 16.00 39.00 70.00 8.00 M6 - 1
SC 32T20A 32.00 20.00 39.00 70.00 8.00 M6 - 1
SC 32T25B 32.00 25.00 39.00 80.00 15.00 M8 - 1
SC 25T10A 25.00 10.00 31.00 62.00 6.00 M8 - 1 SR M8X6 DIN916 HW 4.0*
SC 25T12A 25.00 12.00 31.00 62.00 6.00 M8 - 1 SR M8X6 DIN916 HW 4.0*
SC 25T16B 25.00 16.00 31.00 62.00 6.00 - 12.00 2
SC 25T20B 25.00 20.00 31.00 62.00 6.00 - 12.00 2
SC 25T6A 25.00 6.00 31.00 62.00 6.00 M6 - 1 SR M6X6 DIN916 HW 3.0*
SC 25T8A 25.00 8.00 31.00 62.00 6.00 M8 - 1 SR M8X6 DIN916 HW 4.0*
SC 40T10A 40.00 10.00 46.00 66.00 6.00 M8 - 1 SR M8X10 DIN1835-B HW 4.0*
SC 40T12A 40.00 12.00 46.00 66.00 6.00 M8 - 1 SR M8X10 DIN1835-B HW 4.0*
SC 40T16B 40.00 16.00 46.00 66.00 6.00 - 15.00 2
SC 40T20B 40.00 20.00 46.00 66.00 6.00 - 15.00 2
SC 40T25B 40.00 25.00 46.00 66.00 6.00 - 15.00 2
SC 40T32B 40.00 32.00 46.00 66.00 6.00 - 15.00 2
SC 40T6A 40.00 6.00 46.00 66.00 6.00 M6 - 1 SR M6X10 DIN1835B HW 3.0*
SC 40T8A 40.00 8.00 46.00 66.00 6.00 M6 - 1 SR M8X10 DIN1835-B HW 4.0*
SC 50 T40B 50.00 40.00 56.00 86.00 6.00 - 15.00 2
SC 50T10A 50.00 10.00 56.00 76.00 6.00 M8 - 1 SR M8X6 DIN916 HW 4.0*
SC 50T12A 50.00 12.00 56.00 76.00 6.00 M8 - 1 SR M8X6 DIN916 HW 4.0*
SC 50T16B 50.00 16.00 56.00 86.00 6.00 - 15.00 2
SC 50T20B 50.00 20.00 56.00 86.00 6.00 - 15.00 2
SC 50T25B 50.00 25.00 56.00 86.00 6.00 - 15.00 2
SC 50T32B 50.00 32.00 56.00 86.00 6.00 - 15.00 2
SC 50T6A 50.00 6.00 56.00 76.00 6.00 M6 - 1 SR M6X6 DIN916 HW 3.0*
SC 50T8A 50.00 8.00 56.00 76.00 6.00 M8 - 1 SR M8X6 DIN916 HW 4.0*
* Optional, should be ordered separately

739
