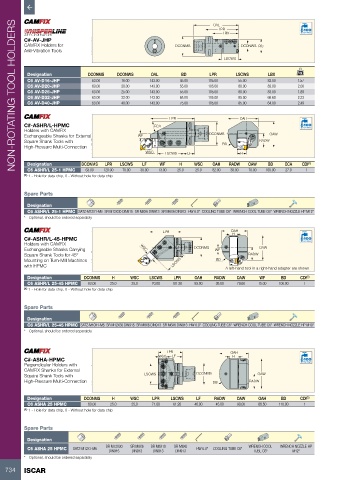

Page 736 - ISCAR(TURNING-CATALOG-42-2022)

OAL
NON-ROTATING TOOL HOLDERS
LPR LBX Bar Max
C#-AV-JHP
CAMFIX Holders for DCONMS DCONWS BD
Anti-Vibration Tools
LSCWS

Designation DCONMS DCONWS OAL BD LPR LSCWS LBX kg
C6 AV-D16-JHP 63.00 16.00 143.00 45.00 105.00 55.00 83.00 1.57
C6 AV-D20-JHP 63.00 20.00 143.00 55.00 105.00 80.00 83.00 2.00
C6 AV-D25-JHP 63.00 25.00 143.00 55.00 105.00 80.00 83.00 1.89
C6 AV-D32-JHP 63.00 32.00 143.00 65.00 105.00 85.00 66.60 2.23
C6 AV-D40-JHP 63.00 40.00 143.00 75.00 105.00 85.00 64.00 2.49
LPR OAH

C#-ASHR/L-HPMC ECA
Holders with CAMFIX Bar Max
Exchangeable Shanks for External WF DCONMS OAW
Square Shank Tools with BD RADW
High-Pressure Multi-Connection
WSC LSCWS LF H
Designation DCONMS LPR LSCWS LF WF H WSC OAH RADW OAW BD ECA CDI (1)
C6 ASHR/L 25-1 HPMC 63.00 120.00 70.00 30.00 13.00 25.0 25.0 82.00 38.00 70.00 100.00 27.0 1
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts
Designation
C6 ASHR/L 25-1 HPMC SATZ-M12X1-M6 SR M12X30 DIN915 SR M8X6 DIN913 SR M6X6 DIN913 HW 6.0* COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH NOZZLE HP M12*
* Optional, should be ordered separately
LPR OAH
H
C#-ASHR/L-45-HPMC
Holders with CAMFIX Bar Max
Exchangeable Shanks Carrying WSC DCONMS WF OAW
Square Shank Tools for 45° RADW
Mounting on Turn-Mill Machines LSCWS BD
with HPMC A left-hand tool in a right-hand adapter are shown
Designation DCONMS H WSC LSCWS LPR OAH RADW OAW WF BD CDI (1)
C6 ASHR/L 25-45 HPMC 63.00 25.0 25.0 70.00 101.30 83.00 38.00 79.60 15.00 100.00 1
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts
Designation
C6 ASHR/L 25-45 HPMC SATZ-M10X1-M5 SR M12X30 DIN915 SR M8X6 DIN913 SR M6X6 DIN913 HW 6.0* COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH NOZZLE HP M10*
* Optional, should be ordered separately

LPR OAH
C#-ASHA-HPMC WSC LF H Bar Max
Perpendicular Holders with
CAMFIX Shanks for External
Square Shank Tools with LSCWS DCONMS OAW
High-Pressure Multi-Connection DB RADW

Designation DCONMS H WSC LPR LSCWS LF RADW OAW OAH BD CDI (1)
C6 ASHA 25 HPMC 63.00 25.0 25.0 71.00 61.20 46.00 45.00 90.00 86.50 110.00 1
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
SR M12X30 SR M8X6 SR M8X10 SR M6X6 WRENCH COOL WRENCH NOZZLE HP
C6 ASHA 25 HPMC SATZ-M12X1-M6 HW 6.0* COOLING TUBE C6*
DIN915 DIN913 DIN913 DIN913 TUBE C6* M12*
* Optional, should be ordered separately
734 ISCAR
