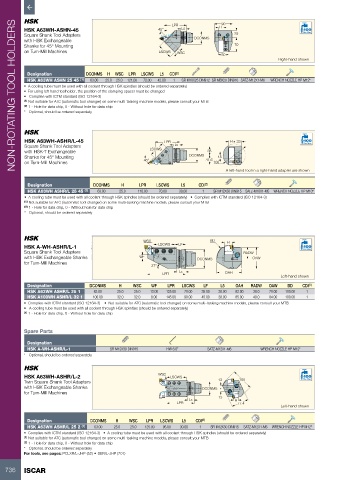

Page 738 - ISCAR(TURNING-CATALOG-42-2022)
P. 738

LPR               90
      NON-ROTATING TOOL HOLDERS
         HSK A63WH-ASHN-45                               45°     L5           H                             Bar Max
         Square Shank Tool Adapters                                                35
         with HSK Exchangeable                                       DCONMS
         Shanks for 45° Mounting                                                   70
         on Turn-Mill Machines                           LSCWS  WSC            50
                                                                                                   Right-hand shown


           Designation         DCONMS  H  WSC  LPR  LSCWS  L5  CDI (2)
           HSK A63WH ASHN 25 45  (1)  63.00  25.0  25.0  121.00  72.00  42.00  1  SR M10X25 DIN912 SR M8X20 DIN916 SATZ-M12X1-M6  WRENCH NOZZLE HP M12*
         •  A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
         •  For using left-hand toolholder, the position of the clamping spacer must be changed
         •   Complies with ICTM standard (ISO 12164-3)
         (1)  Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
         (2)  1 - Hole for data chip, 0 - Without hole for data chip
         *  Optional, should be ordered separately


          HSK A63WH-ASHR/L-45                              LPR                    H  33
          Square Shank Tool Adapters                  LSCWS   L5                                            Bar Max
          with HSK-T Exchangeable                                         38
          Shanks for 45° Mounting                                  DCONMS  41.6  15
          on Turn-Mill Machines                     45°                     100
                                                                                A left-hand tool in a right-hand adapter are shown

           Designation            DCONMS    H     LPR   LSCWS    L5    CDI (2)
           HSK A63WH ASHR/L 25 45  (1)  63.00  25.0  110.00  70.00  30.00  1  SR M12X30 DIN915 SATZ-M10X1-M5  WRENCH NOZZLE HP M10*
          •  A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)   •  Complies with ICTM standard (ISO 12164-3)
          (1)  Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
          (2)  1 - Hole for data chip, 0 - Without hole for data chip
          *  Optional, should be ordered separately


                                                   WSC                     BD
         HSK A-WH-ASHR/L-1                               LSCWS  LF               H
         Square Shank Tool Adapters                                                    RADW                 Bar Max
         with HSK Exchangeable Shanks             WF                  DCONMS              OAW
         for Turn-Mill Machines
                                                      27°
                                                          LPR   L5              OAH
                                                                                                    Left-hand shown
           Designation           DCONMS    H    WSC   WF    LPR  LSCWS  LF    L5    OAH  RADW  OAW    BD   CDI (1)
           HSK A63WH ASHR/L 25 1  63.00   25.0  25.0  13.00  125.00  70.00  35.00  30.00  82.00  38.0  70.00  100.00  1
           HSK A100WH ASHR/L 32 1  100.00  32.0  32.0  8.00  145.00  90.00  45.00  38.00  85.00  40.0  84.00  100.00  1
         •  Complies with ICTM standard (ISO 12164-3)    •  Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
         •   A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
         (1)  1 - Hole for data chip, 0 - Without hole for data chip

         Spare Parts
           Designation
           HSK A-WH-ASHR/L-1            SR M12X30 DIN915    HW 6.0*       SATZ-M12X1-M6      WRENCH NOZZLE HP M12*
         *  Optional, should be ordered separately


         HSK A63WH-ASHR/L-2                              WSC  LSCWS                                         Bar Max
         Twin Square Shank Tool Adapters                                      13     100
         with HSK Exchangeable Shanks                                   DCONMS
         for Turn-Mill Machines
                                                                              13
                                                                   L5              H
                                                               LPR                  77.4
                                                                                                    Left-hand shown
           Designation           DCONMS   H   WSC   LPR  LSCWS   L5   CDI (2)
           HSK A63WH ASHR/L 25 2  (1)  63.00  25.0  25.0  125.00  95.00  30.00  1  SR M12X30 DIN915  SATZ-M12X1-M6  WRENCH NOZZLE HP M12*
         •  Complies with ICTM standard (ISO 12164-3)   •  A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
         (1)  Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
         (2)  1 - Hole for data chip, 0 - Without hole for data chip
         *  Optional, should be ordered separately
         For tools, see pages: PCLXR/L-JHP (52) • SER/L-JHP (701)
