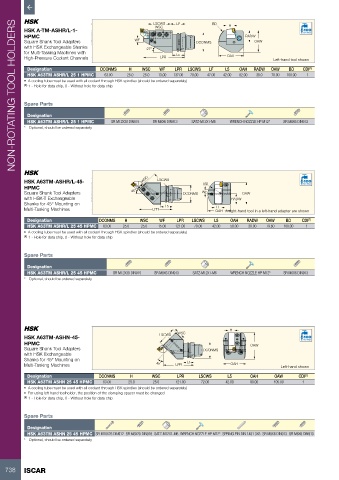

Page 740 - ISCAR(TURNING-CATALOG-42-2022)

LSCWS LF BD
NON-ROTATING TOOL HOLDERS
HSK A-TM-ASHR/L-1- WSC H Bar Max
HPMC RADW
Square Shank Tool Adapters WF DCONMS OAW
with HSK Exchangeable Shanks 27°
for Multi-Tasking Machines with L5
High-Pressure Coolant Channels LPR OAH Left-hand tool shown
Designation DCONMS H WSC WF LPR LSCWS LF L5 OAH RADW OAW BD CDI (1)
HSK A63TM ASHR/L 25 1 HPMC 63.00 25.0 25.0 13.00 137.00 70.00 47.00 42.00 82.00 38.0 70.00 100.00 1
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
HSK A63TM ASHR/L 25 1 HPMC SR M12X30 DIN915 SR M8X6 DIN913 SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SR M6X6 DIN913
* Optional, should be ordered separately

HSK A63TM-ASHR/L-45- WSC LSCWS BD Bar Max
HPMC
Square Shank Tool Adapters 45˚ DCONMS WF OAW
with HSK-T Exchangeable RADW
Shanks for 45° Mounting on L5
H
Multi-Tasking Machines LPR OAH A right-hand tool in a left-hand adapter are shown
Designation DCONMS H WSC WF LPR LSCWS L5 OAH RADW OAW BD CDI (1)
HSK A63TM ASHR/L 25 45 HPMC 63.00 25.0 25.0 15.00 121.00 70.00 42.00 58.00 38.00 79.60 100.00 1
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
HSK A63TM ASHR/L 25 45 HPMC SR M12X30 DIN915 SR M8X6 DIN913 SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SR M6X6 DIN913
* Optional, should be ordered separately

H
HSK A63TM-ASHN-45- LSCWS WSC Bar Max
HPMC OAW
Square Shank Tool Adapters DCONMS
with HSK Exchangeable
Shanks for 45° Mounting on L5
Multi-Tasking Machines 45˚ LPR OAH Left-hand shown

Designation DCONMS H WSC LPR LSCWS L5 OAH OAW CDI (1)
HSK A63TM ASHN 25 45 HPMC 63.00 25.0 25.0 121.00 72.00 42.00 90.00 105.00 1
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
• For using left-hand toolholder, the position of the clamping spacer must be changed
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
HSK A63TM ASHN 25 45 HPMC SR M10X25 DIN912 SR M8X20 DIN916 SATZ-M12X1-M6 WRENCH NOZZLE HP M12* SPRING PIN DIN 1481 3X5 SR M8X6 DIN913 SR M6X6 DIN913
* Optional, should be ordered separately
