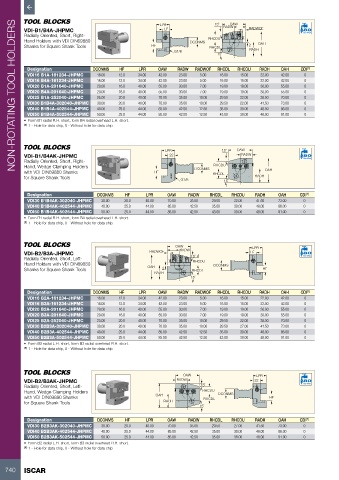

LPR 15˚ OAW
NON-ROTATING TOOL HOLDERS
VDI-B1/B4A-JHPMC LF RADW RADWOF 80
Radially Oriented, Short, Right- Bar Max
Hand Holders with VDI DIN69880 DCONMS RHCDU
Shanks for Square Shank Tools HF RHCDL 2 OAH
G1/8 RADH
15˚
Designation DCONMS HF LPR OAW RADW RADWOF RHCDL RHCDU RADH OAH CDI (1)
VDI16 B1A-161234-JHPMC 16.00 12.0 34.00 42.00 23.00 5.00 16.00 15.00 22.00 42.00 0
VDI16 B4A-161234-JHPMC 16.00 12.0 34.00 42.00 23.00 5.00 16.00 15.00 22.00 42.00 0
VDI20 B1A-201640-JHPMC 20.00 16.0 40.00 55.00 30.00 7.00 19.00 19.00 30.00 55.00 0
VDI20 B4A-201640-JHPMC 20.00 16.0 40.00 55.00 30.00 7.00 19.00 19.00 30.00 55.00 0
VDI25 B1A-252040-JHPMC 25.00 20.0 40.00 70.00 35.00 10.00 29.50 22.00 38.50 70.00 0
VDI30 B1B4A-302040-JHPMC 30.00 20.0 40.00 70.00 35.00 10.00 29.50 22.00 41.50 73.00 0
VDI40 B1B4A-402544-JHPMC 40.00 25.0 44.00 85.00 42.50 12.50 35.00 30.00 48.00 86.00 0
VDI50 B1B4A-502544-JHPMC 50.00 25.0 44.00 85.00 42.50 12.50 43.00 30.00 48.00 91.00 0
• Form B1 radial R.H. short, form B4 radial overhead L.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
LPR 15˚ OAW
VDI-B1/B4AK-JHPMC 22 RADW 80
Bar Max
Radially Oriented, Short, Right-
Hand, Wedge Clamping Holders DCONMS RHCDU
with VDI DIN69880 Shanks HF RHCDL OAH
for Square Shank Tools G1/8 15˚ RADH
Designation DCONMS HF LPR OAW RADW RHCDL RHCDU RADH OAH CDI (1)
VDI30 B1B4AK-302040-JHPMC 30.00 20.0 40.00 70.00 35.00 29.50 22.00 41.50 73.00 0
VDI40 B1B4AK-402544-JHPMC 40.00 25.0 44.00 85.00 42.50 35.00 30.00 48.00 86.00 0
VDI50 B1B4AK-502544-JHPMC 50.00 25.0 44.00 85.00 42.50 43.00 30.00 48.00 91.00 0
• Form B1 radial R.H. short, form B4 radial overhead L.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
OAW LPR
VDI-B2/B3A-JHPMC RADWOF RADW LF 80
Radially Oriented, Short, Left- 15˚ RHCDU Bar Max
Hand Holders with VDI DIN69880 OAH DCONMS
Shanks for Square Shank Tools 2 RHCDL HF
RADH
15˚
Designation DCONMS HF LPR OAW RADW RADWOF RHCDL RHCDU RADH OAH CDI (1)
VDI16 B2A-161234-JHPMC 16.00 12.0 34.00 42.00 23.00 5.00 16.00 15.00 22.00 42.00 0
VDI16 B3A-161234-JHPMC 16.00 12.0 34.00 42.00 23.00 5.00 16.00 15.00 22.00 42.00 0
VDI20 B2A-201640-JHPMC 20.00 16.0 40.00 55.00 30.00 7.00 19.00 19.00 30.00 55.00 0
VDI20 B3A-201640-JHPMC 20.00 16.0 40.00 55.00 30.00 7.00 19.00 19.00 30.00 55.00 0
VDI25 B2A-252040-JHPMC 25.00 20.0 40.00 70.00 35.00 10.00 29.50 22.00 38.50 70.00 0
VDI30 B2B3A-302040-JHPMC 30.00 20.0 40.00 70.00 35.00 10.00 29.50 27.00 41.50 73.00 0
VDI40 B2B3A-402544-JHPMC 40.00 25.0 44.00 85.00 42.50 12.50 35.00 30.00 48.00 86.00 0
VDI50 B2B3A-502544-JHPMC 50.00 25.0 44.00 85.00 42.50 12.50 43.00 38.00 48.00 91.00 0
• Form B2 radial L.H. short, form B3 radial overhead R.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
OAW LPR
VDI-B2/B3AK-JHPMC RADW 22 80
Radially Oriented, Short, Left- 15˚ Bar Max
Hand, Wedge Clamping Holders RHCDU DCONMS
with VDI DIN69880 Shanks OAH RHCDL HF
for Square Shank Tools RADH
15˚
Designation DCONMS HF LPR OAW RADW RHCDL RHCDU RADH OAH CDI (1)
VDI30 B2B3AK-302040-JHPMC 30.00 20.0 40.00 70.00 35.00 29.50 27.00 41.50 73.00 0
VDI40 B2B3AK-402544-JHPMC 40.00 25.0 44.00 85.00 42.50 35.00 30.00 48.00 86.00 0
VDI50 B2B3AK-502544-JHPMC 50.00 25.0 44.00 85.00 42.50 35.00 38.00 48.00 91.00 0
• Form B2 radial L.H. short, form B3 radial overhead R.H. short.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
