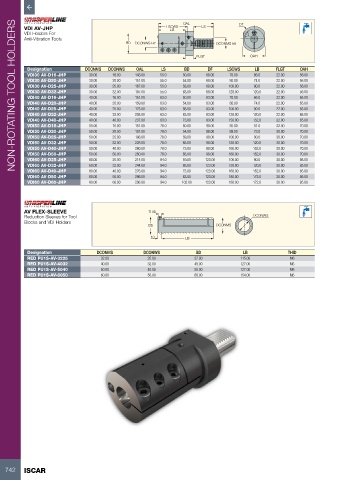

Page 744 - ISCAR(TURNING-CATALOG-42-2022)

OAL
NON-ROTATING TOOL HOLDERS
VDI AV-JHP LSCWS LS DF
LB
VDI Holders For
Anti-Vibration Tools
BD DCONWS H7 DCONMS h6
FLGT OAH
Designation DCONMS DCONWS OAL LS BD DF LSCWS LB FLGT OAH
VDI30 AV-D16-JHP 30.00 16.00 143.00 55.0 50.00 68.00 70.00 66.0 22.00 56.00
VDI30 AV-D20-JHP 30.00 20.00 151.00 55.0 54.00 68.00 80.00 74.0 22.00 56.00
VDI30 AV-D25-JHP 30.00 25.00 167.00 55.0 58.00 68.00 100.00 90.0 22.00 56.00
VDI30 AV-D32-JHP 30.00 32.00 197.00 55.0 63.00 68.00 128.00 120.0 22.00 56.00
VDI40 AV-D16-JHP 40.00 16.00 151.00 63.0 50.00 83.00 70.00 66.0 22.00 65.00
VDI40 AV-D20-JHP 40.00 20.00 159.00 63.0 54.00 83.00 80.00 74.0 22.00 65.00
VDI40 AV-D25-JHP 40.00 25.00 175.00 63.0 58.00 83.00 100.00 90.0 22.00 65.00
VDI40 AV-D32-JHP 40.00 32.00 205.00 63.0 63.00 83.00 128.00 120.0 22.00 65.00
VDI40 AV-D40-JHP 40.00 40.00 237.00 63.0 73.00 83.00 150.00 152.0 22.00 65.00
VDI50 AV-D16-JHP 50.00 16.00 181.00 78.0 50.00 98.00 85.00 81.0 22.00 70.00
VDI50 AV-D20-JHP 50.00 20.00 181.00 78.0 54.00 98.00 89.00 73.0 30.00 70.00
VDI50 AV-D25-JHP 50.00 25.00 198.00 78.0 59.00 98.00 106.00 90.0 30.00 70.00
VDI50 AV-D32-JHP 50.00 32.00 228.00 78.0 65.00 98.00 128.00 120.0 30.00 70.00
VDI50 AV-D40-JHP 50.00 40.00 260.00 78.0 73.00 98.00 160.00 152.0 30.00 70.00
VDI50 AV-D50-JHP 50.00 50.00 260.00 78.0 83.00 98.00 160.00 152.0 30.00 70.00
VDI60 AV-D25-JHP 60.00 25.00 214.00 94.0 59.00 123.00 106.00 90.0 30.00 85.00
VDI60 AV-D32-JHP 60.00 32.00 244.00 94.0 65.00 123.00 128.00 120.0 30.00 85.00
VDI60 AV-D40-JHP 60.00 40.00 276.00 94.0 73.00 123.00 160.00 152.0 30.00 85.00
VDI60 AV-D50-JHP 60.00 50.00 296.00 94.0 83.00 123.00 180.00 172.0 30.00 85.00
VDI60 AV-D60-JHP 60.00 60.00 296.00 94.0 102.00 123.00 180.00 172.0 30.00 85.00

AV FLEX-SLEEVE THID
Reduction Sleeves for Tool DCONWS
Blocks and VDI Holders
BD DCONMS

10 LB

Designation DCONMS DCONWS BD LB THID
RED PU1S-AV-3225 32.00 25.00 37.00 115.00 M6
RED PU1S-AV-4032 40.00 32.00 45.00 127.00 M6
RED PU1S-AV-5040 50.00 40.00 55.00 127.00 M6
RED PU1S-AV-6050 60.00 50.00 65.00 154.00 M6

742 ISCAR
