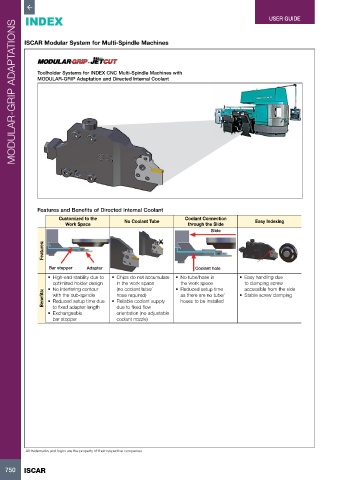

USER GUIDE
MODULAR-GRIP ADAPTATIONS

ISCAR Modular System for Multi-Spindle Machines

·

Toolholder Systems for INDEX CNC Multi-Spindle Machines with
MODULAR-GRIP Adaptation and Directed Internal Coolant

Features and Benefits of Directed Internal Coolant
Customized to the No Coolant Tube Coolant Connection Easy Indexing
Work Space through the Slide
Slide

Features: X

Bar stopper Adapter Coolant hole
• High-end stability due to • Chips do not accumulate • No tube/hose in • Easy handling due
optimized holder design in the work space the work space to clamping screw
• No interfering contour (no coolant tube/ • Reduced setup time accessible from the side
Benefits: • Reduced setup time due • Reliable coolant supply as there are no tube/ • Stable screw clamping
with the sub-spindle
hose required)
hoses to be installed
to fixed adapter length
orientation (no adjustable
• Exchangeable due to fixed flow
bar stopper coolant nozzle)
