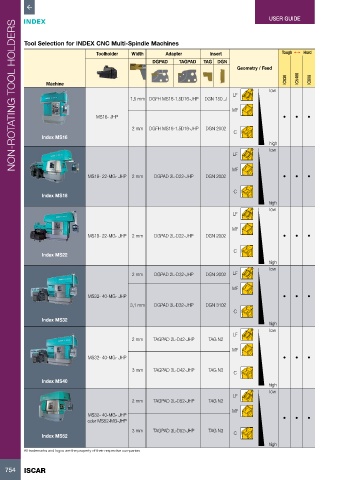

USER GUIDE
NON-ROTATING TOOL HOLDERS
Tool Selection for INDEX CNC Multi-Spindle Machines
Toolholder Width Adapter Insert Tough 1 Hard
DGPAD TAGPAD TAG DGN
Geometry / Feed
IC830 IC5400 IC808
Machine
low
LF
1,5 mm DGFH MS16-1.5D16-JHP DGN 150..J
MF
MS16- JHP • • •
2 mm DGFH MS16-1.5D16-JHP DGN 2002
C
Index MS16
high
low
LF
MF
MS18- 22-MG- JHP 2 mm DGPAD 2L-D22-JHP DGN 2002 • • •
C
Index MS18
high
low
LF
MF
MS18- 22-MG- JHP 2 mm DGPAD 2L-D22-JHP DGN 2002 • • •
C
Index MS22
high
low
2 mm DGPAD 2L-D32-JHP DGN 2002 LF
MF
MS32- 40-MG- JHP • • •
3,1 mm DGPAD 3L-D32-JHP DGN 3102
C
Index MS32
high
low
LF
2 mm TAGPAD 2L-D42-JHP TAG N2
MF
MS32- 40-MG- JHP • • •
3 mm TAGPAD 3L-D42-JHP TAG N3
C
Index MS40
high
low
LF
2 mm TAGPAD 2L-D52-JHP TAG N2
MF
MS32- 40-MG- JHP • • •
oder MS52-MG-JHP
3 mm TAGPAD 3L-D52-JHP TAG N3 C
Index MS52
high
