· USER GUIDE
MODULAR-GRIP ADAPTATIONS

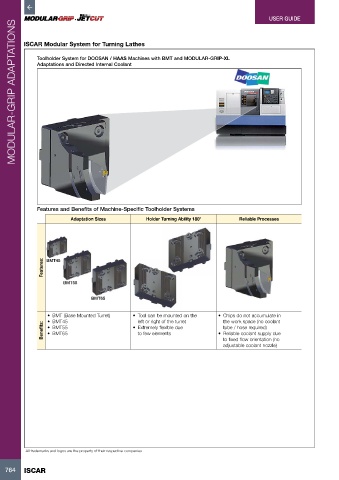

ISCAR Modular System for Turning Lathes

Toolholder System for DOOSAN / HAAS Machines with BMT and MODULAR-GRIP-XL
Adaptations and Directed Internal Coolant

Features and Benefits of Machine-Specific Toolholder Systems
Adaptation Sizes Holder Turning Ability 180° Reliable Processes

Features: BMT45

BMT55

BMT65

• BMT (Base Mounted Turret) • Tool can be mounted on the • Chips do not accumulate in
• BMT45 left or right of the turret the work space (no coolant
Benefits: • BMT55 • Extremely flexible due • Reliable coolant supply due
tube / hose required)
to few elements
• BMT65
to fixed flow orientation (no
adjustable coolant nozzle)

All trademarks and logos are the property of their respective companies
