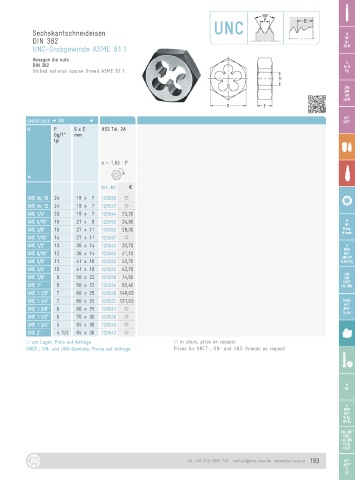

Page 193 - JBO-Katalog-2022

UNC
Sechskantschneideisen M
DIN 382 MF
MJ
UNC-Grobgewinde ASME B1.1 EG M
Hexagon die nuts
G
DIN 382 Rc, R
Unified national coarse thread ASME B1.1 Pg

UNC
UNF
UN
UNJF

NPT
ORDER-CODE D SK D NPTF
d P S x E HSS Tol. 2A
Gg/1“ mm
tpi

x = 1,65 · P

G
Art.-Nr. a

UNC Nr. 10 24 18 x 7 120526 ○
UNC Nr. 12 24 18 x 7 120527 ○
UNC 1/4“ 20 18 x 7 120544 23,20
UNC 5/16“ 18 21 x 9 120553 24,90 M
MF
M
M keg.
UNC 3/8“ 16 27 x 11 120552 28,00 M taper
UNC 7/16“ 14 27 x 11 120557 ○
UNC 1/2“ 13 36 x 14 120542 33,70 G
BSW
UNC 9/16“ 12 36 x 14 120560 41,10 BSF
DIN 477
UNC 5/8“ 11 41 x 18 120555 43,70 R, BA, Pg
UNC 3/4“ 10 41 x 18 120550 43,70
UNC
UNC 7/8“ 9 50 x 22 120558 74,60 UNC
UNF
UNF
UNEF
UNEF
UNC 1“ 8 50 x 22 120534 82,40 UN, UNS
UN, UNS
UNC 1 1/8“ 7 60 x 25 120539 149,00
UNC 1 1/4“ 7 60 x 25 120537 121,00 NPSM
NPT
UNC 1 3/8“ 6 60 x 25 120541 ○ NPTF
UNC 1 1/2“ 6 70 x 30 120536 ○ Tr, Rd
UNC 1 3/4“ 5 85 x 36 120540 ○
UNC 2“ 4 1/2 85 x 36 120547 ○
 am Lager, Preis auf Anfrage  in stock, price on request
UNEF-, UN- und UNS-Gewinde, Preise auf Anfrage Prices for UNEF-, UN- and UNS-threads on request
