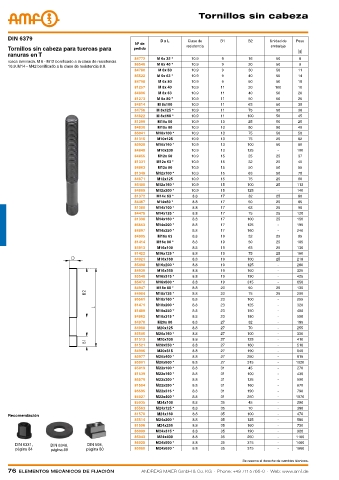

P. 76

tornillos sin cabeza




    DIN 6379                                             D x L     Clase de   B1        B2      Unidad de  Peso
                                                Nº de
    Tornillos sin cabeza para tuercas para      pedido            resistencia                   embalaje
                                                                                                          [g]
    ranuras en T
                                                84772   M 6x 32 *   10.9       9        16        50      8
    rosca laminada. M 6 - M12 bonificado a la clase de resistencia
                                                86546   M 6x 40 *   10.9       9        20        50      9
    10.9. M14 - M42 bonificado a la clase de resistencia 8.8.
                                                84780    M 6x 50    10.9       9        30        50      11
                                                85522   M 6x 63 *   10.9       9        40        50      14
                                                84798    M 6x 80    10.9       9        50        50      18
                                                81257    M 8x 40    10.9       11       20        100     10
                                                84806    M 8x 63    10.9       11       40        50      20
                                                81273   M 8x 80 *   10.9       11       50        50      25
                                                84814   M 8x100     10.9       11       63        50      30
                                                84756   M 8x125 *   10.9       11       75        50      36
                                                84822   M 8x160 *   10.9       11       100       50      45
                                                81299   M10x 50     10.9       13       25        50      25
                                                84830   M10x 80     10.9       13       50        50      40
                                                86041   M10x100 *   10.9       13       75        50      50
                                                81315   M10x125     10.9       13       75        25      62
                                                85928   M10x160 *   10.9       13       100       50      80
                                                84848   M10x200     10.9       13       125        -     100
                                                84855   M12x 50     10.9       15       25        25      37
                                                81331   M12x 63 *   10.9       15       32        25      45
                                                84863   M12x 80     10.9       15       50        50      55
                                                81349   M12x100 *   10.9       15       63        50      70
                                                84871   M12x125     10.9       15       75        25      90
                                                85480   M12x160 *   10.9       15       100       25     113
                                                84889   M12x200 *   10.9       15       125        -     140
                                                81372   M14x 63 *    8.8       17       32        25      80
                                                84467   M14x80 *     8.8       17       50        25      85
                                                81380   M14x100 *    8.8       17       63        25      90
                                                84475   M14x125 *    8.8       17       75        25     120
                                                81398   M14x160 *    8.8       17       100       25     150
                                                86553   M14x200 *    8.8       17       125        -     195
                                                84897   M14x250 *    8.8       17       160        -     240
                                                84905   M16x 63      8.8       19       32        25      85
                                                81414   M16x 80 *    8.8       19       50        25     105
                                                84913   M16x100      8.8       19       63        25     130
                                                81422   M16x125 *    8.8       19       75        25     160
                                                84921   M16x160      8.8       19       100       25     218
                                                85498   M16x200 *    8.8       19       125       -      280
                                                84939   M16x250      8.8       19       160       -      325
                                                85548   M16x315 *    8.8       19       190       -      425
                                                85472   M16x500 *    8.8       19       315       -      650
                                                84947   M18x 80 *    8.8       23       50        25     130
                                                84954   M18x125 *    8.8       23       75        25     200
                                                86561   M18x160 *    8.8       23       100       -      255
                                                81471   M18x200 *    8.8       23       125       -      320
                                                81489   M18x250 *    8.8       23       150       -      400
                                                84962   M18x315 *    8.8       23       180       -      500
                                                84970   M20x 80      8.8       27       32        -      185
                                                84988   M20x125      8.8       27       70        -      255
                                                85506   M20x160 *    8.8       27       100       -      330
                                                81513   M20x200      8.8       27       125       -      410
                                                81521   M20x250 *    8.8       27       160       -      510
                                                84996   M20x315      8.8       27       190        -     640
                                                85977   M20x400 *    8.8       27       250        -     815
                                                85001   M20x500 *    8.8       27       315        -     1020
                                                85019   M22x100 *    8.8       31       45         -     270
                                                81539   M22x160 *    8.8       31       100        -     430
                                                86579   M22x200 *    8.8       31       125        -     500
                                                81554   M22x250 *    8.8       31       160        -     670
                                                86595   M22x315 *    8.8       31       190        -     790
                                                85027   M22x400 *    8.8       31       250        -     1070
                                                85035   M24x100      8.8       35       45         -     290
                                                85563   M24x125 *    8.8       35       70         -     380
                                                81570   M24x160      8.8       35       100        -     470
    Recomendación
                                                85514   M24x200 *    8.8       35       125        -     580
                                                81596   M24x250      8.8       35       160        -     730
                                                86009   M24x315 *    8.8       35       190        -     920
                                                85043   M24x400      8.8       35       250        -     1160
                                                86025   M24x500 *    8.8       35       315        -     1460
      DIN 6331,    DIN 6340,    DIN 508,
      página 84    página 89   página 80        85050   M24x630 *    8.8       35       315        -     1860
                                                                                      Se reserva el derecho de cambios técnicos.
