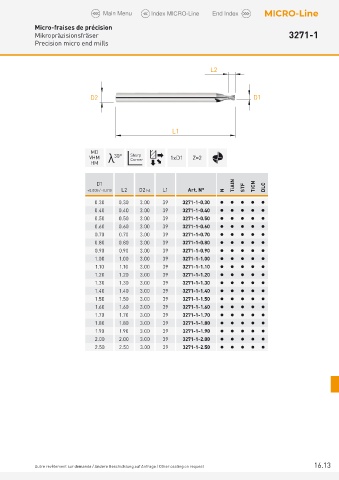

Micro-fraises de précision
Mikropräzisionsfräser 3271-1
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 1xD1 Z=2
Corner
HM
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.30 0.30 3.00 39 3271-1-0.30     
0.40 0.40 3.00 39 3271-1-0.40     
0.50 0.50 3.00 39 3271-1-0.50     
0.60 0.60 3.00 39 3271-1-0.60     
0.70 0.70 3.00 39 3271-1-0.70     
0.80 0.80 3.00 39 3271-1-0.80     
0.90 0.90 3.00 39 3271-1-0.90     
1.00 1.00 3.00 39 3271-1-1.00     
1.10 1.10 3.00 39 3271-1-1.10     
1.20 1.20 3.00 39 3271-1-1.20     
1.30 1.30 3.00 39 3271-1-1.30     
1.40 1.40 3.00 39 3271-1-1.40     
1.50 1.50 3.00 39 3271-1-1.50     
1.60 1.60 3.00 39 3271-1-1.60     
1.70 1.70 3.00 39 3271-1-1.70     
1.80 1.80 3.00 39 3271-1-1.80     
1.90 1.90 3.00 39 3271-1-1.90     
2.00 2.00 3.00 39 3271-1-2.00     
2.50 2.50 3.00 39 3271-1-2.50     

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.13
