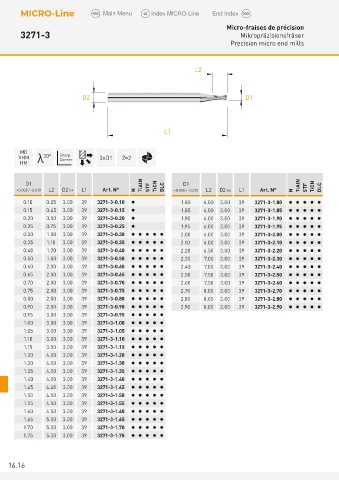

Micro-fraises de précision
3271-3 Mikropräzisionsfräser
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 3xD1 Z=2
Corner
HM
D1 TiAlN D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC +0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.10 0.25 3.00 39 3271-3-0.10  1.80 6.00 3.00 39 3271-3-1.80  
0.15 0.45 3.00 39 3271-3-0.15  1.85 6.00 3.00 39 3271-3-1.85  
0.20 0.50 3.00 39 3271-3-0.20  1.90 6.00 3.00 39 3271-3-1.90  
0.25 0.75 3.00 39 3271-3-0.25  1.95 6.00 3.00 39 3271-3-1.95  
0.30 1.00 3.00 39 3271-3-0.30   2.00 6.00 3.00 39 3271-3-2.00  
0.35 1.10 3.00 39 3271-3-0.35   2.10 6.00 3.00 39 3271-3-2.10  
0.40 1.20 3.00 39 3271-3-0.40   2.20 6.50 3.00 39 3271-3-2.20  
0.50 1.50 3.00 39 3271-3-0.50   2.30 7.00 3.00 39 3271-3-2.30  
0.60 2.00 3.00 39 3271-3-0.60   2.40 7.00 3.00 39 3271-3-2.40  
0.65 2.00 3.00 39 3271-3-0.65   2.50 7.50 3.00 39 3271-3-2.50  
0.70 2.00 3.00 39 3271-3-0.70   2.60 7.50 3.00 39 3271-3-2.60  
0.75 2.00 3.00 39 3271-3-0.75   2.70 8.00 3.00 39 3271-3-2.70  
0.80 2.50 3.00 39 3271-3-0.80   2.80 8.00 3.00 39 3271-3-2.80  
0.90 2.50 3.00 39 3271-3-0.90   2.90 8.00 3.00 39 3271-3-2.90  
0.95 3.00 3.00 39 3271-3-0.95  
1.00 3.00 3.00 39 3271-3-1.00  
1.05 3.00 3.00 39 3271-3-1.05  
1.10 3.00 3.00 39 3271-3-1.10  
1.15 3.50 3.00 39 3271-3-1.15  
1.20 4.00 3.00 39 3271-3-1.20  
1.30 4.00 3.00 39 3271-3-1.30  
1.35 4.00 3.00 39 3271-3-1.35  
1.40 4.00 3.00 39 3271-3-1.40  
1.45 4.40 3.00 39 3271-3-1.45  
1.50 4.50 3.00 39 3271-3-1.50  
1.55 4.50 3.00 39 3271-3-1.55  
1.60 4.50 3.00 39 3271-3-1.60  
1.65 5.00 3.00 39 3271-3-1.65  
1.70 5.00 3.00 39 3271-3-1.70  
1.75 5.30 3.00 39 3271-3-1.75  

16.16
