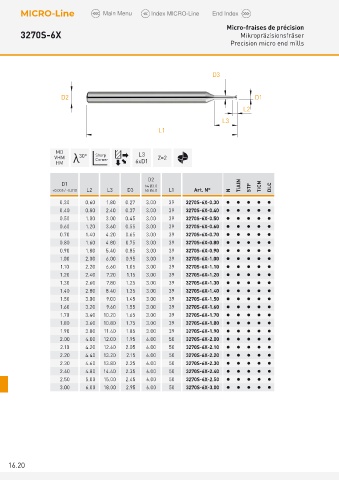

Micro-fraises de précision
3270S-6X Mikropräzisionsfräser
Precision micro end mills

D3

D2 D1
L2
L3
L1

MD L3
VHM λ 30° Sharp Z=2
Corner
HM 6xD1
D2
D1 h4 Ø3.0 TiAlN
+0.005 / -0.010 L2 L3 D3 h5 Ø6.0 L1 Art. N° N STF TiCN DLC
0.30 0.60 1.80 0.27 3.00 39 3270S-6X-0.30     
0.40 0.80 2.40 0.37 3.00 39 3270S-6X-0.40     
0.50 1.00 3.00 0.45 3.00 39 3270S-6X-0.50     
0.60 1.20 3.60 0.55 3.00 39 3270S-6X-0.60     
0.70 1.40 4.20 0.65 3.00 39 3270S-6X-0.70     
0.80 1.60 4.80 0.75 3.00 39 3270S-6X-0.80     
0.90 1.80 5.40 0.85 3.00 39 3270S-6X-0.90     
1.00 2.00 6.00 0.95 3.00 39 3270S-6X-1.00     
1.10 2.20 6.60 1.05 3.00 39 3270S-6X-1.10     
1.20 2.40 7.20 1.15 3.00 39 3270S-6X-1.20     
1.30 2.60 7.80 1.25 3.00 39 3270S-6X-1.30     
1.40 2.80 8.40 1.35 3.00 39 3270S-6X-1.40     
1.50 3.00 9.00 1.45 3.00 39 3270S-6X-1.50     
1.60 3.20 9.60 1.55 3.00 39 3270S-6X-1.60     
1.70 3.40 10.20 1.65 3.00 39 3270S-6X-1.70     
1.80 3.60 10.80 1.75 3.00 39 3270S-6X-1.80     
1.90 3.80 11.40 1.85 3.00 39 3270S-6X-1.90     
2.00 4.00 12.00 1.95 6.00 50 3270S-6X-2.00     
2.10 4.20 12.60 2.05 6.00 50 3270S-6X-2.10     
2.20 4.40 13.20 2.15 6.00 50 3270S-6X-2.20     
2.30 4.60 13.80 2.25 6.00 50 3270S-6X-2.30     
2.40 4.80 14.40 2.35 6.00 50 3270S-6X-2.40     
2.50 5.00 15.00 2.45 6.00 50 3270S-6X-2.50     
3.00 6.00 18.00 2.95 6.00 50 3270S-6X-3.00     
