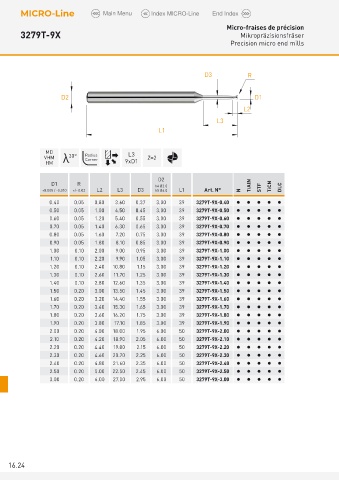

Micro-fraises de précision
3279T-9X Mikropräzisionsfräser
Precision micro end mills

D3 R

D2 D1
L2
L3
L1

MD L3
VHM λ 30° Radius Z=2
Corner
HM 9xD1
D2
D1 R h4 Ø3.0 TiAlN
+0.005 / -0.010 +/- 0.02 L2 L3 D3 h5 Ø6.0 L1 Art. N° N STF TiCN DLC
0.40 0.05 0.80 3.60 0.37 3.00 39 3279T-9X-0.40     
0.50 0.05 1.00 4.50 0.45 3.00 39 3279T-9X-0.50     
0.60 0.05 1.20 5.40 0.55 3.00 39 3279T-9X-0.60     
0.70 0.05 1.40 6.30 0.65 3.00 39 3279T-9X-0.70     
0.80 0.05 1.60 7.20 0.75 3.00 39 3279T-9X-0.80     
0.90 0.05 1.80 8.10 0.85 3.00 39 3279T-9X-0.90     
1.00 0.10 2.00 9.00 0.95 3.00 39 3279T-9X-1.00     
1.10 0.10 2.20 9.90 1.05 3.00 39 3279T-9X-1.10     
1.20 0.10 2.40 10.80 1.15 3.00 39 3279T-9X-1.20     
1.30 0.10 2.60 11.70 1.25 3.00 39 3279T-9X-1.30     
1.40 0.10 2.80 12.60 1.35 3.00 39 3279T-9X-1.40     
1.50 0.20 3.00 13.50 1.45 3.00 39 3279T-9X-1.50     
1.60 0.20 3.20 14.40 1.55 3.00 39 3279T-9X-1.60     
1.70 0.20 3.40 15.30 1.65 3.00 39 3279T-9X-1.70     
1.80 0.20 3.60 16.20 1.75 3.00 39 3279T-9X-1.80     
1.90 0.20 3.80 17.10 1.85 3.00 39 3279T-9X-1.90     
2.00 0.20 4.00 18.00 1.95 6.00 50 3279T-9X-2.00     
2.10 0.20 4.20 18.90 2.05 6.00 50 3279T-9X-2.10     
2.20 0.20 4.40 19.80 2.15 6.00 50 3279T-9X-2.20     
2.30 0.20 4.60 20.70 2.25 6.00 50 3279T-9X-2.30     
2.40 0.20 4.80 21.60 2.35 6.00 50 3279T-9X-2.40     
2.50 0.20 5.00 22.50 2.45 6.00 50 3279T-9X-2.50     
3.00 0.20 6.00 27.00 2.95 6.00 50 3279T-9X-3.00     
