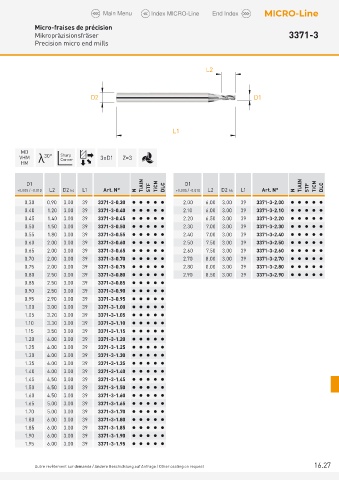

Micro-fraises de précision
Mikropräzisionsfräser 3371-3
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 3xD1 Z=3
Corner
HM
D1 TiAlN D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC +0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.30 0.90 3.00 39 3371-3-0.30   2.00 6.00 3.00 39 3371-3-2.00  
0.40 1.20 3.00 39 3371-3-0.40   2.10 6.00 3.00 39 3371-3-2.10  
0.45 1.40 3.00 39 3371-3-0.45   2.20 6.50 3.00 39 3371-3-2.20  
0.50 1.50 3.00 39 3371-3-0.50   2.30 7.00 3.00 39 3371-3-2.30  
0.55 1.80 3.00 39 3371-3-0.55   2.40 7.00 3.00 39 3371-3-2.40  
0.60 2.00 3.00 39 3371-3-0.60   2.50 7.50 3.00 39 3371-3-2.50  
0.65 2.00 3.00 39 3371-3-0.65   2.60 7.50 3.00 39 3371-3-2.60  
0.70 2.00 3.00 39 3371-3-0.70   2.70 8.00 3.00 39 3371-3-2.70  
0.75 2.00 3.00 39 3371-3-0.75   2.80 8.00 3.00 39 3371-3-2.80  
0.80 2.50 3.00 39 3371-3-0.80   2.90 8.50 3.00 39 3371-3-2.90  
0.85 2.50 3.00 39 3371-3-0.85  
0.90 2.50 3.00 39 3371-3-0.90  
0.95 2.90 3.00 39 3371-3-0.95  
1.00 3.00 3.00 39 3371-3-1.00  
1.05 3.20 3.00 39 3371-3-1.05  
1.10 3.30 3.00 39 3371-3-1.10  
1.15 3.50 3.00 39 3371-3-1.15  
1.20 4.00 3.00 39 3371-3-1.20  
1.25 4.00 3.00 39 3371-3-1.25  
1.30 4.00 3.00 39 3371-3-1.30  
1.35 4.00 3.00 39 3371-3-1.35  
1.40 4.00 3.00 39 3371-3-1.40  
1.45 4.50 3.00 39 3371-3-1.45  
1.50 4.50 3.00 39 3371-3-1.50  
1.60 4.50 3.00 39 3371-3-1.60  
1.65 5.00 3.00 39 3371-3-1.65  
1.70 5.00 3.00 39 3371-3-1.70  
1.80 6.00 3.00 39 3371-3-1.80  
1.85 6.00 3.00 39 3371-3-1.85  
1.90 6.00 3.00 39 3371-3-1.90  
1.95 6.00 3.00 39 3371-3-1.95  

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.27
