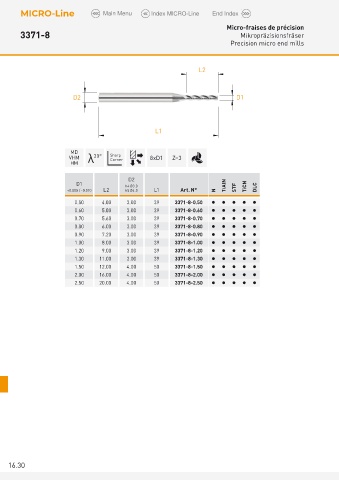

Micro-fraises de précision
3371-8 Mikropräzisionsfräser
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 8xD1 Z=3
Corner
HM
D2
D1 h4 Ø3.0 TiAlN
+0.005 / -0.010 L2 h5 Ø4.0 L1 Art. N° N STF TiCN DLC
0.50 4.00 3.00 39 3371-8-0.50     
0.60 5.00 3.00 39 3371-8-0.60     
0.70 5.60 3.00 39 3371-8-0.70     
0.80 6.00 3.00 39 3371-8-0.80     
0.90 7.20 3.00 39 3371-8-0.90     
1.00 8.00 3.00 39 3371-8-1.00     
1.20 9.00 3.00 39 3371-8-1.20     
1.30 11.00 3.00 39 3371-8-1.30     
1.50 12.00 4.00 50 3371-8-1.50     
2.00 16.00 4.00 50 3371-8-2.00     
2.50 20.00 4.00 50 3371-8-2.50     
