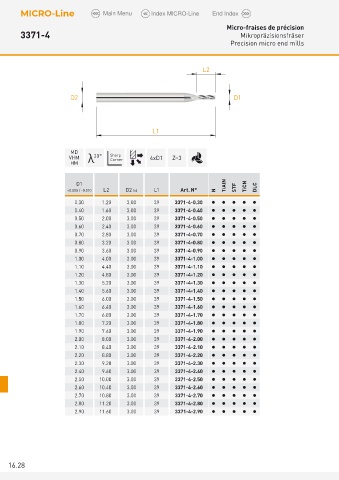

Page 830 - 25-053 APPLITEC catalogue 2025.indb

MICRO-Line Main Menu Index MICRO-Line End Index

Micro-fraises de précision
3371-4 Mikropräzisionsfräser
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 4xD1 Z=3
Corner
HM
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.30 1.20 3.00 39 3371-4-0.30     
0.40 1.60 3.00 39 3371-4-0.40     
0.50 2.00 3.00 39 3371-4-0.50     
0.60 2.40 3.00 39 3371-4-0.60     
0.70 2.80 3.00 39 3371-4-0.70     
0.80 3.20 3.00 39 3371-4-0.80     
0.90 3.60 3.00 39 3371-4-0.90     
1.00 4.00 3.00 39 3371-4-1.00     
1.10 4.40 3.00 39 3371-4-1.10     
1.20 4.80 3.00 39 3371-4-1.20     
1.30 5.20 3.00 39 3371-4-1.30     
1.40 5.60 3.00 39 3371-4-1.40     
1.50 6.00 3.00 39 3371-4-1.50     
1.60 6.40 3.00 39 3371-4-1.60     
1.70 6.80 3.00 39 3371-4-1.70     
1.80 7.20 3.00 39 3371-4-1.80     
1.90 7.60 3.00 39 3371-4-1.90     
2.00 8.00 3.00 39 3371-4-2.00     
2.10 8.40 3.00 39 3371-4-2.10     
2.20 8.80 3.00 39 3371-4-2.20     
2.30 9.20 3.00 39 3371-4-2.30     
2.40 9.60 3.00 39 3371-4-2.40     
2.50 10.00 3.00 39 3371-4-2.50     
2.60 10.40 3.00 39 3371-4-2.60     
2.70 10.80 3.00 39 3371-4-2.70     
2.80 11.20 3.00 39 3371-4-2.80     
2.90 11.60 3.00 39 3371-4-2.90     
