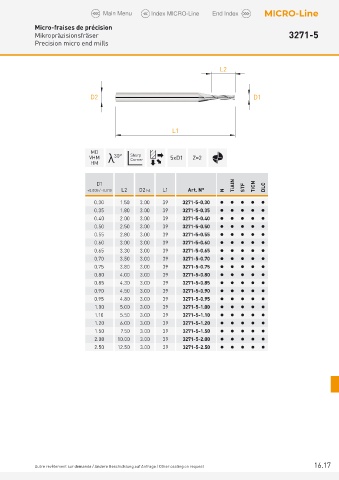

Micro-fraises de précision
Mikropräzisionsfräser 3271-5
Precision micro end mills

L2

D2 D1

L1

MD
VHM λ 30° Sharp 5xD1 Z=2
Corner
HM
D1 TiAlN
+0.005 / -0.010 L2 D2 h4 L1 Art. N° N STF TiCN DLC
0.30 1.50 3.00 39 3271-5-0.30     
0.35 1.80 3.00 39 3271-5-0.35     
0.40 2.00 3.00 39 3271-5-0.40     
0.50 2.50 3.00 39 3271-5-0.50     
0.55 2.80 3.00 39 3271-5-0.55     
0.60 3.00 3.00 39 3271-5-0.60     
0.65 3.30 3.00 39 3271-5-0.65     
0.70 3.50 3.00 39 3271-5-0.70     
0.75 3.80 3.00 39 3271-5-0.75     
0.80 4.00 3.00 39 3271-5-0.80     
0.85 4.30 3.00 39 3271-5-0.85     
0.90 4.50 3.00 39 3271-5-0.90     
0.95 4.80 3.00 39 3271-5-0.95     
1.00 5.00 3.00 39 3271-5-1.00     
1.10 5.50 3.00 39 3271-5-1.10     
1.20 6.00 3.00 39 3271-5-1.20     
1.50 7.50 3.00 39 3271-5-1.50     
2.00 10.00 3.00 39 3271-5-2.00     
2.50 12.50 3.00 39 3271-5-2.50     

Autre revêtement sur demande / Andere Beschichtung auf Anfrage / Other coating on request 16.17
