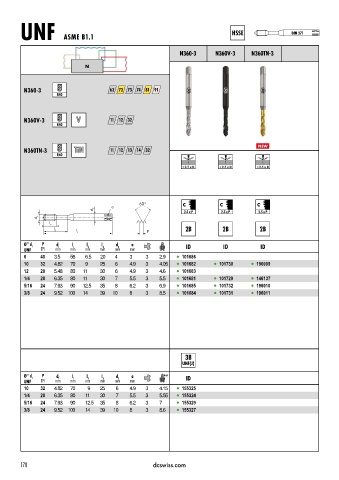

UNF ASME B1.1 HSSE DIN 371

N360 3 N360V 3 N360TN 3

N

N360-3 63 72 73 74 81 91
R40

N360V-3 V 11 12 32
R40

NEW
N360TN-3 TiN 11 12 13 14 32 NEW
R40
< 2.5 x D < 2.5 x D < 2.5 x D

C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID
UNF TPI mm mm mm mm mm mm
6 40 3.5 56 6.5 20 4 3 3 2.9 l 101686
10 32 4.82 70 9 25 6 4.9 3 4.05 l 101682 l 101730 l 196009
12 28 5.48 80 11 30 6 4.9 3 4.6 l 101683
1/4 28 6.35 80 11 30 7 5.5 3 5.5 l 101681 l 101729 l 146137
5/16 24 7.93 90 12.5 35 8 6.2 3 6.9 l 101685 l 101732 l 196010
3/8 24 9.52 100 14 39 10 8 3 8.5 l 101684 l 101731 l 196011

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a UNJF ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 9 25 6 4.9 3 4.15 l 155325
1/4 28 6.35 80 11 30 7 5.5 3 5.55 l 155324
5/16 24 7.93 90 12.5 35 8 6.2 3 7 l 155329
3/8 24 9.52 100 14 39 10 8 3 8.6 l 155327
