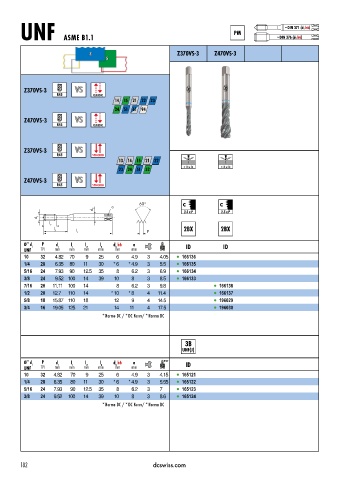

Page 185 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 PM ~ DIN 376 (d2 h6)
DIN 371 (d2 h6)
~

Z Z370VS 3 Z470VS 3
S

Z370VS-3 VS
R45 CLASSIC
14 15 21 22 23
24 51 61 94

Z470VS 3 VS
R45 CLASSIC

Z370VS-3 VS
R45 SYNCHRO
13 14 15 21 22
23 24 51 52 < 3 x D < 3 x D

Z470VS-3 VS
R45 SYNCHRO

C C
a
d 2
2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d h6 a ID ID
2
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 9 25 6 4.9 3 4.05 l 166136
1/4 28 6.35 80 11 30 * 6 * 4.9 3 5.5 l 166135
5/16 24 7.93 90 12.5 35 8 6.2 3 6.9 l 166134
3/8 24 9.52 100 14 39 10 8 3 8.5 l 166133
7/16 20 11.11 100 14 8 6.2 3 9.8 l 166138
1/2 20 12.7 110 14 * 10 * 8 4 11.4 l 166137
5/8 18 15.87 110 18 12 9 4 14.5 l 196029
3/4 16 19.05 125 21 14 11 4 17.5 l 196030
* Norme DC / * DC Norm/ * Norma DC

Ø’’ d 1 P d 1 l 1 l 2 l 3 d h6 a UNJF ID
2
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 9 25 6 4.9 3 4.15 l 165121
1/4 28 6.35 80 11 30 * 6 * 4.9 3 5.55 l 165122
5/16 24 7.93 90 12.5 35 8 6.2 3 7 l 165123
3/8 24 9.52 100 14 39 10 8 3 8.6 l 165124
* Norme DC / * DC Norm/ * Norma DC

182 dcswiss.com
