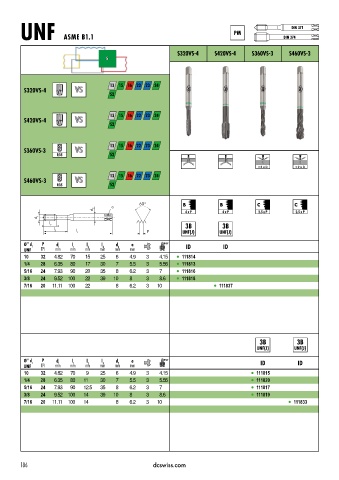

Page 189 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 PM DIN 374
DIN 371

S320VS 4 S420VS 4 S360VS 3 S460VS 3
S

S320VS-4 VS 13 15 16 22 23 24
52

S420VS-4 VS 13 15 16 22 23 24
52

S360VS-3 VS 13 15 16 22 23 24
R35 52

< 2 x D < 2 x D

S460VS-3 VS 13 15 16 22 23 24
R35 52

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a UNJF ID ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 15 25 6 4.9 3 4.15 l 111814
1/4 28 6.35 80 17 30 7 5.5 3 5.55 l 111813
5/16 24 7.93 90 20 35 8 6.2 3 7 l 111816
3/8 24 9.52 100 22 39 10 8 3 8.6 l 111818
7/16 20 11.11 100 22 8 6.2 3 10 l 111837

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a UNJF ID ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 9 25 6 4.9 3 4.15 l 111815
1/4 28 6.35 80 11 30 7 5.5 3 5.55 l 111820
5/16 24 7.93 90 12.5 35 8 6.2 3 7 l 111817
3/8 24 9.52 100 14 39 10 8 3 8.6 l 111819
7/16 20 11.11 100 14 8 6.2 3 10 l 111833

186 dcswiss.com
