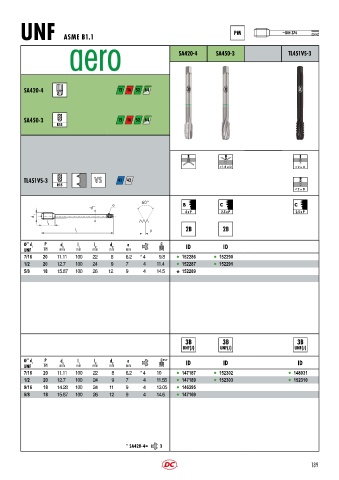

P. 192
UNF ASME B1.1 PM ~ DIN 374
SA420 4 SA450 3 TL451VS 3
SA420-4 15 16 52
SA450-3 15 16 52
R15
< 1.5 x D < 2 x D
TL451VS-3 VS 41 42
R15
< 2 x D
a B C C
d 2
4 x P 2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID
UNF TPI mm mm mm mm mm
7/16 20 11.11 100 22 8 6.2 * 4 9.8 l 152286 l 152290
1/2 20 12.7 100 24 9 7 4 11.4 l 152287 l 152291
5/8 18 15.87 100 26 12 9 4 14.5 152289
Ø’’ d 1 P d 1 l 1 l 2 d 2 a UNJF ID ID ID
UNF TPI mm mm mm mm mm
7/16 20 11.11 100 22 8 6.2 * 4 10 l 147187 l 152302 l 148031
1/2 20 12.7 100 24 9 7 4 11.55 l 147189 l 152303 l 152310
9/16 18 14.28 100 24 11 9 4 13.05 l 146395
5/8 18 15.87 100 26 12 9 4 14.6 l 147169
* SA420-4= 3
