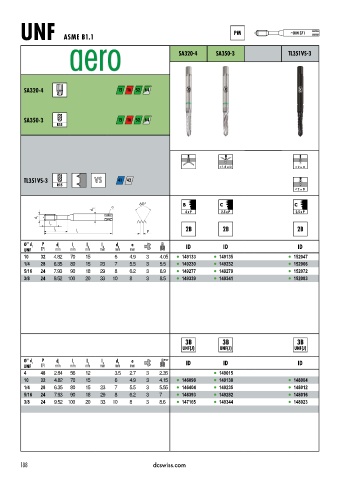

UNF ASME B1.1 PM ~ DIN 371

SA320 4 SA350 3 TL351VS 3

SA320-4 15 16 52

SA350-3 15 16 52
R15

< 1.5 x D < 2 x D

TL351VS-3 VS 41 42
R15
< 2 x D

B C C
a
d 2
4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 15 6 4.9 3 4.05 l 149133 l 149135 l 152047
1/4 28 6.35 80 15 23 7 5.5 3 5.5 l 149230 l 149232 l 152066
5/16 24 7.93 90 18 29 8 6.2 3 6.9 l 149277 l 149279 l 152072
3/8 24 9.52 100 20 33 10 8 3 8.5 l 149339 l 149341 l 152083

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a UNJF ID ID ID
UNF TPI mm mm mm mm mm mm
4 48 2.84 56 12 3.5 2.7 3 2.35 l 149015
10 32 4.82 70 15 6 4.9 3 4.15 l 146098 l 149138 l 148004
1/4 28 6.35 80 15 23 7 5.5 3 5.55 l 146404 l 149235 l 148012
5/16 24 7.93 90 18 29 8 6.2 3 7 l 146393 l 149282 l 148016
3/8 24 9.52 100 20 33 10 8 3 8.6 l 147165 l 149344 l 148023
