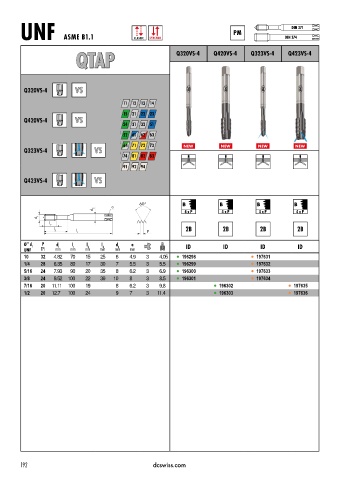

Page 195 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 CLASSIC SYNCHRO PM DIN 374
DIN 371

QTAP Q320VS-4 Q420VS-4 Q323VS-4 Q423VS-4

Q320VS-4 VS

11 12 13 14
15 21 22 23
Q420VS-4 VS
24 31 32 51
52 61 62 63

NEW
NEW
NEW
NEW
Q323VS-4 VS 71 72 73 NEW NEW NEW NEW
74 81 82 83
91 92 94
Q423VS-4 VS

B B B B
a
d 2 4 x P 4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 15 25 6 4.9 3 4.05 l 196298 l 197631
1/4 28 6.35 80 17 30 7 5.5 3 5.5 l 196299 l 197632
5/16 24 7.93 90 20 35 8 6.2 3 6.9 l 196300 l 197633
3/8 24 9.52 100 22 39 10 8 3 8.5 l 196301 l 197634
7/16 20 11.11 100 19 8 6.2 3 9.8 l 196302 l 197635
1/2 20 12.7 100 24 9 7 3 11.4 l 196303 l 197636
