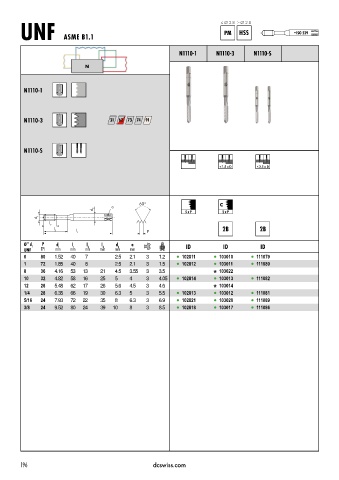

Page 199 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 ≤ Ø 2.8 > Ø 2.8 ~ ISO 529
HSS
PM

N1110 1 N1110 3 N1110 S

N

N1110-1

N1110-3 31 62 73 74 91

N1110-S

< 1.5 x D < 2.5 x D

C
a
d 2
5 x P 2 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID
UNF TPI mm mm mm mm mm mm
0 80 1.52 40 7 2.5 2.1 3 1.2 l 102811 l 103010 l 111079
1 72 1.85 40 8 2.5 2.1 3 1.5 l 102812 l 103011 l 111080
8 36 4.16 53 13 21 4.5 3.55 3 3.5 103022
10 32 4.82 58 16 25 5 4 3 4.05 l 102814 l 103013 l 111082
12 28 5.48 62 17 26 5.6 4.5 3 4.6 103014
1/4 28 6.35 66 19 30 6.3 5 3 5.5 l 102813 l 103012 l 111081
5/16 24 7.93 72 22 35 8 6.3 3 6.9 l 102821 l 103020 l 111089
3/8 24 9.52 80 24 39 10 8 3 8.5 l 102818 l 103017 l 111086
