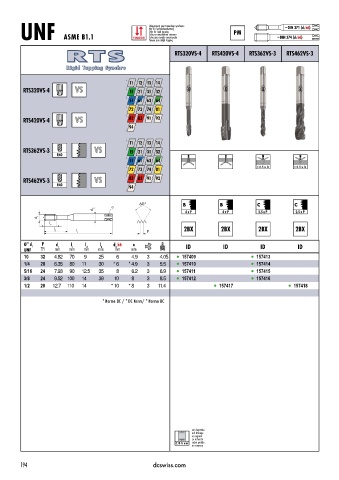

Page 197 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 SYNCHRO Uniquement pour taraudage synchrone PM ~ DIN 374 (d2 h6)
DIN 371 (d2 h6)
~
Nur für Sychronbearbeitung
Only for rigid tapping
Solo per maschiatura sincrona
Solo para roscado sincronizado
Только для ridgid tapping
RT S RTS320VS 4 RTS420VS 4 RTS362VS 3 RTS462VS 3
Rigid Tapping Sy nc hro

11 12 13 14
RTS320VS-4 VS 15 21 31 32
51 61 63
72 73 74 81

RTS420VS-4 VS 82 83 91 92
94

11 12 13 14
RTS362VS-3 VS 15 21 31 32
R40
51 61 63
72 73 74 81 < 2.5 x D < 2.5 x D

RTS462VS-3 VS 82 83 91 92
R40 94

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d h6 a ID ID ID ID
2
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 9 25 6 4.9 3 4.05 l 157409 l 157413
1/4 28 6.35 80 11 30 * 6 * 4.9 3 5.5 l 157410 l 157414
5/16 24 7.93 90 12.5 35 8 6.2 3 6.9 l 157411 l 157415
3/8 24 9.52 100 14 39 10 8 3 8.5 l 157412 l 157416
1/2 20 12.7 110 14 * 10 * 8 3 11.4 l 157417 l 157418

* Norme DC / * DC Norm/ * Norma DC

sur demande
auf Anfrage
on request
su richiesta
> Ø 6 mm sobre pedido
по запросу
