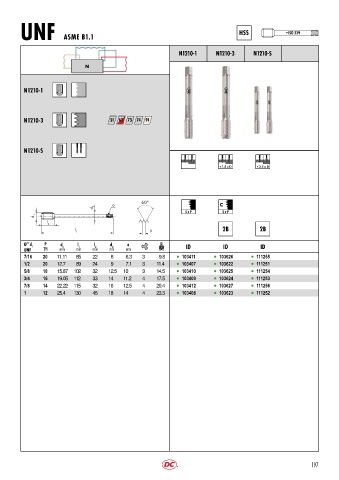

P. 200
UNF ASME B1.1 HSS ~ ISO 529
N1210 1 N1210 3 N1210 S
N
N1210-1
N1210-3 31 62 73 74 91
N1210-S
< 1.5 x D < 2.5 x D
a C
d 2
5 x P 2 x P
d 1
l 2
l
1 P
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID
UNF TPI mm mm mm mm mm
7/16 20 11.11 85 22 8 6.3 3 9.8 l 103411 l 103626 l 111255
1/2 20 12.7 89 24 9 7.1 3 11.4 l 103407 l 103622 l 111251
5/8 18 15.87 102 32 12.5 10 3 14.5 l 103410 l 103625 l 111254
3/4 16 19.05 112 33 14 11.2 4 17.5 l 103409 l 103624 l 111253
7/8 14 22.22 115 32 16 12.5 4 20.4 l 103412 l 103627 l 111256
1 12 25.4 130 45 18 14 4 23.3 l 103408 l 103623 l 111252
197
