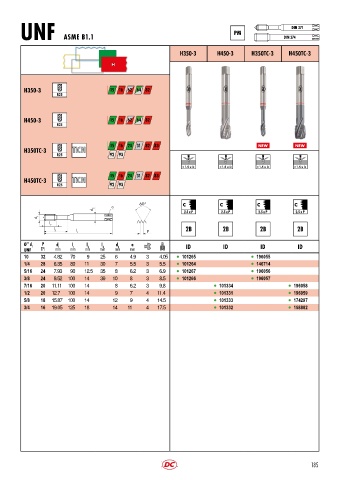

Page 188 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 PM DIN 374
DIN 371

H350 3 H450 3 H350TC-3 H450TC-3
H

H350-3 15 16 62 82
R25

H450-3 15 16 62 82
R25

NEW
NEW
H350TC 3 TiCN 15 16 24 31 82 83 NEW NEW
R25 92 93
< 1.5 x D < 1.5 x D < 1.5 x D < 1.5 x D

H450TC 3 TiCN 15 16 24 31 82 83
R25 92 93

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 9 25 6 4.9 3 4.05 l 101265 l 196055
1/4 28 6.35 80 11 30 7 5.5 3 5.5 l 101264 l 146714
5/16 24 7.93 90 12.5 35 8 6.2 3 6.9 l 101267 l 196056
3/8 24 9.52 100 14 39 10 8 3 8.5 l 101266 l 196057
7/16 20 11.11 100 14 8 6.2 3 9.8 l 101334 l 196058
1/2 20 12.7 100 14 9 7 4 11.4 l 101331 l 196059
5/8 18 15.87 100 14 12 9 4 14.5 l 101333 l 174297
3/4 16 19.05 125 18 14 11 4 17.5 l 101332 l 158882

185
