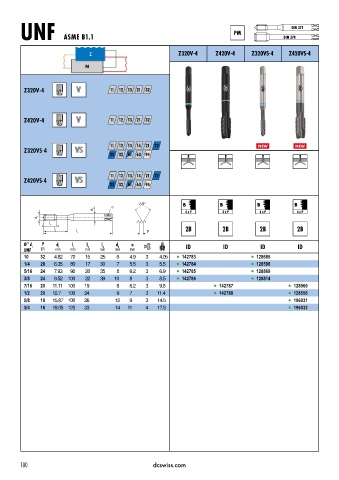

Page 183 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 PM DIN 374
DIN 371

Z Z320V 4 Z420V 4 Z320VS 4 Z420VS 4

N

Z320V-4 V 11 12 13 21 32

Z420V 4 V 11 12 13 21 32

NEW
NEW
Z320VS 4 VS 11 12 13 14 21 22 NEW NEW
23 32 61 63 94

Z420VS-4 VS 11 12 13 14 21 22
23 32 61 63 94

B B B B
a
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 15 25 6 4.9 3 4.05 l 142783 l 128685
1/4 28 6.35 80 17 30 7 5.5 3 5.5 l 142784 l 128596
5/16 24 7.93 90 20 35 8 6.2 3 6.9 l 142785 l 128869
3/8 24 9.52 100 22 39 10 8 3 8.5 l 142786 l 128814
7/16 20 11.11 100 19 8 6.2 3 9.8 l 142787 l 128960
1/2 20 12.7 100 24 9 7 3 11.4 l 142788 l 128556
5/8 18 15.87 100 26 12 9 3 14.5 l 196031
3/4 16 19.05 125 33 14 11 4 17.5 l 196032
