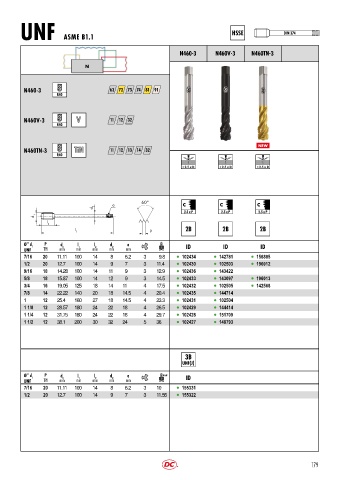

Page 182 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 HSSE DIN 374

N460 3 N460V 3 N460TN 3

N

N460-3 63 72 73 74 81 91
R40

N460V-3 V 11 12 32
R40

NEW
N460TN-3 TiN 11 12 13 14 32 NEW
R40

< 2.5 x D < 2.5 x D < 2.5 x D

a C C C
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID
UNF TPI mm mm mm mm mm
7/16 20 11.11 100 14 8 6.2 3 9.8 l 102434 l 142781 l 158885
1/2 20 12.7 100 14 9 7 3 11.4 l 102430 l 102503 l 196012
9/16 18 14.28 100 14 11 9 3 12.9 l 102436 l 143422
5/8 18 15.87 100 14 12 9 3 14.5 l 102433 l 143097 l 196013
3/4 16 19.05 125 18 14 11 4 17.5 l 102432 l 102505 l 142568
7/8 14 22.22 140 20 18 14.5 4 20.4 l 102435 l 144714
1 12 25.4 160 27 18 14.5 4 23.3 l 102431 l 102504
1 1/8 12 28.57 180 24 22 18 4 26.5 l 102429 l 144414
1 1/4 12 31.75 180 24 22 18 4 29.7 l 102428 l 151709
1 1/2 12 38.1 200 30 32 24 5 36 l 102427 l 148793

Ø’’ d 1 P d 1 l 1 l 2 d 2 a UNJF ID
UNF TPI mm mm mm mm mm
7/16 20 11.11 100 14 8 6.2 3 10 l 155331
1/2 20 12.7 100 14 9 7 3 11.55 l 155322

179
