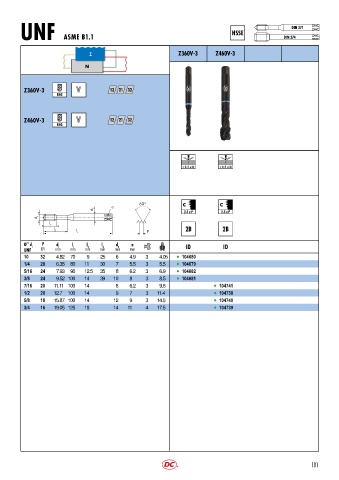

Page 184 - DC_SWISS(Catalogue_TM_ES-EN)

UNF ASME B1.1 HSSE DIN 374
DIN 371

Z Z360V 3 Z460V 3

N

Z360V 3 V 12 21 32
R40

Z460V 3 V 12 21 32
R40

< 2.5 x D < 2.5 x D

C C
a
d 2
2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID
UNF TPI mm mm mm mm mm mm
10 32 4.82 70 9 25 6 4.9 3 4.05 l 104680
1/4 28 6.35 80 11 30 7 5.5 3 5.5 l 104679
5/16 24 7.93 90 12.5 35 8 6.2 3 6.9 l 104682
3/8 24 9.52 100 14 39 10 8 3 8.5 l 104681
7/16 20 11.11 100 14 8 6.2 3 9.8 l 104741
1/2 20 12.7 100 14 9 7 3 11.4 l 104738
5/8 18 15.87 100 14 12 9 3 14.5 l 104740
3/4 16 19.05 125 18 14 11 4 17.5 l 104739
