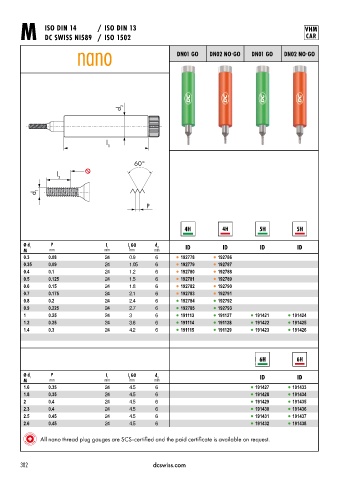

Page 385 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 14 / ISO DIN 13 VHM
M DC SWISS NI589 / ISO 1502 CAR

DN01 GO DN02 NO•GO DN01 GO DN02 NO•GO

d 2

l
1

l
2

d 1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
M mm mm mm mm
0.3 0.08 24 0.9 6 l 192778 l 192786
0.35 0.09 24 1.05 6 l 192779 l 192787
0.4 0.1 24 1.2 6 l 192780 l 192788
0.5 0.125 24 1.5 6 l 192781 l 192789
0.6 0.15 24 1.8 6 l 192782 l 192790
0.7 0.175 24 2.1 6 l 192783 l 192791
0.8 0.2 24 2.4 6 l 192784 l 192792
0.9 0.225 24 2.7 6 l 192785 l 192793
1 0.25 24 3 6 l 191113 l 191127 l 191421 l 191424
1.2 0.25 24 3.6 6 l 191114 l 191128 l 191422 l 191425
1.4 0.3 24 4.2 6 l 191115 l 191129 l 191423 l 191426

Ø d 1 P l 1 l GO d 2 ID ID
2
M mm mm mm mm
1.6 0.35 24 4.5 6 l 191427 l 191433
1.8 0.35 24 4.5 6 l 191428 l 191434
2 0.4 24 4.5 6 l 191429 l 191435
2.3 0.4 24 4.5 6 l 191430 l 191436
2.5 0.45 24 4.5 6 l 191431 l 191437
2.6 0.45 24 4.5 6 l 191432 l 191438

All nano thread plug gauges are SCS-certified and the paid certificate is available on request.

382 dcswiss.com
