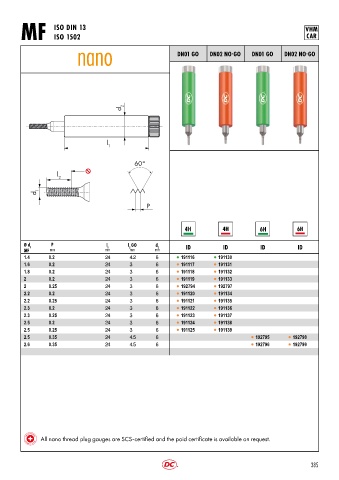

ISO DIN 13 VHM
MF ISO 1502 CAR

DN01 GO DN02 NO•GO DN01 GO DN02 NO•GO

d 2

l
1

l
2

d 1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
MF mm mm mm mm
1.4 0.2 24 4.2 6 l 191116 l 191130
1.6 0.2 24 3 6 l 191117 l 191131
1.8 0.2 24 3 6 l 191118 l 191132
2 0.2 24 3 6 l 191119 l 191133
2 0.25 24 3 6 l 192794 l 192797
2.2 0.2 24 3 6 l 191120 l 191134
2.2 0.25 24 3 6 l 191121 l 191135
2.3 0.2 24 3 6 l 191122 l 191136
2.3 0.25 24 3 6 l 191123 l 191137
2.5 0.2 24 3 6 l 191124 l 191138
2.5 0.25 24 3 6 l 191125 l 191139
2.5 0.35 24 4.5 6 l 192795 l 192798
2.6 0.35 24 4.5 6 l 192796 l 192799

All nano thread plug gauges are SCS-certified and the paid certificate is available on request.
