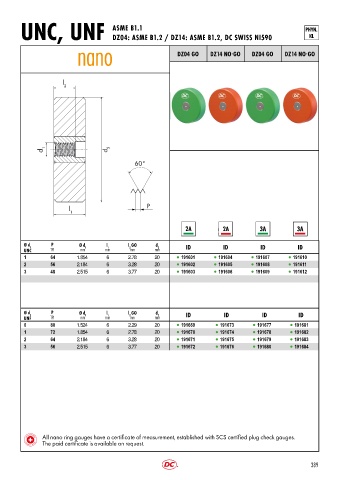

Page 392 - DC_SWISS(Catalogue_TM_ES-EN)

ASME B1.1
UNC, UNF DZ04: ASME B1.2 / DZ14: ASME B1.2, DC SWISS NI590

DZ04 GO DZ14 NO•GO DZ04 GO DZ14 NO•GO

l
2

d 1

l P
1

2A

Ø d 1 P Ø d 1 l 1 l GO d 2 ID ID ID ID
2
UNC TPI mm mm mm mm
1 64 1.854 6 2.78 20 l 191601 l 191604 l 191607 l 191610
2 56 2.184 6 3.28 20 l 191602 l 191605 l 191608 l 191611
3 48 2.515 6 3.77 20 l 191603 l 191606 l 191609 l 191612

Ø d 1 P Ø d 1 l 1 l GO d 2 ID ID ID ID
2
UNF TPI mm mm mm mm
0 80 1.524 6 2.29 20 l 191669 l 191673 l 191677 l 191681
1 72 1.854 6 2.78 20 l 191670 l 191674 l 191678 l 191682
2 64 2.184 6 3.28 20 l 191671 l 191675 l 191679 l 191683
3 56 2.515 6 3.77 20 l 191672 l 191676 l 191680 l 191684

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.
