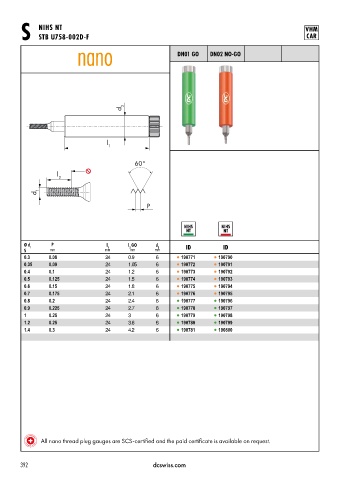

NIHS NT VHM
S STB U758-002D-F CAR

DN01 GO DN02 NO-GO

d 2

l
1

l
2

d 1

P

NIHS NIHS
NT NT

Ø d 1 P l 1 l GO d 2 ID ID
2
S mm mm mm mm
0.3 0.08 24 0.9 6 l 190771 l 190790
0.35 0.09 24 1.05 6 l 190772 l 190791
0.4 0.1 24 1.2 6 l 190773 l 190792
0.5 0.125 24 1.5 6 l 190774 l 190793
0.6 0.15 24 1.8 6 l 190775 l 190794
0.7 0.175 24 2.1 6 l 190776 l 190795
0.8 0.2 24 2.4 6 l 190777 l 190796
0.9 0.225 24 2.7 6 l 190778 l 190797
1 0.25 24 3 6 l 190779 l 190798
1.2 0.25 24 3.6 6 l 190780 l 190799
1.4 0.3 24 4.2 6 l 190781 l 190800

All nano thread plug gauges are SCS-certified and the paid certificate is available on request.
