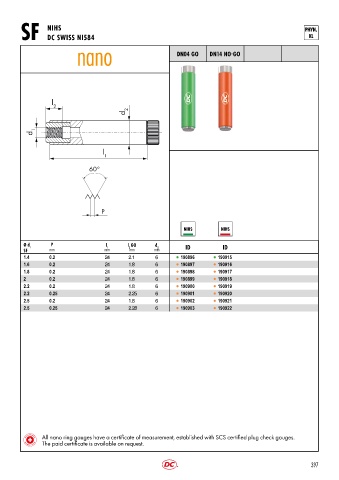

Page 400 - DC_SWISS(Catalogue_TM_ES-EN)

NIHS
SF DC SWISS NI584

DN04 GO DN14 NO•GO

l
2
d 2

d 1

l
1

P

Ø d 1 P l 1 l GO d 2 ID ID
2
SF mm mm mm mm
1.4 0.2 24 2.1 6 l 190896 l 190915
1.6 0.2 24 1.8 6 l 190897 l 190916
1.8 0.2 24 1.8 6 l 190898 l 190917
2 0.2 24 1.8 6 l 190899 l 190918
2.2 0.2 24 1.8 6 l 190900 l 190919
2.2 0.25 24 2.25 6 l 190901 l 190920
2.5 0.2 24 1.8 6 l 190902 l 190921
2.5 0.25 24 2.28 6 l 190903 l 190922

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.

397
