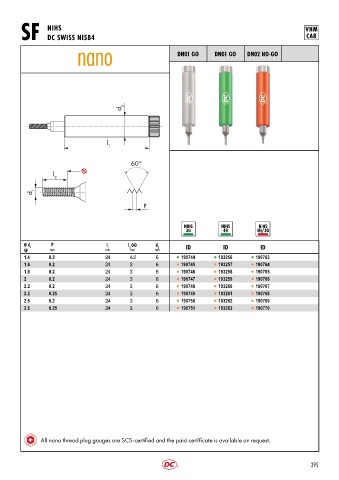

NIHS VHM
SF SF DC SWISS NI584 CAR

DN01 GO DN01 GO DN02 NO-GO

d 2

l
1

l
2

d 1

P

NIHS NIHS NIHS
3G 4H 4H/3G

Ø d 1 P l 1 l GO d 2 ID ID ID
2
SF mm mm mm mm
1.4 0.2 24 4.2 6 l 190744 l 193256 l 190763
1.6 0.2 24 3 6 l 190745 l 193257 l 190764
1.8 0.2 24 3 6 l 190746 l 193258 l 190765
2 0.2 24 3 6 l 190747 l 193259 l 190766
2.2 0.2 24 3 6 l 190748 l 193260 l 190767
2.2 0.25 24 3 6 l 190749 l 193261 l 190768
2.5 0.2 24 3 6 l 190750 l 193262 l 190769
2.5 0.25 24 3 6 l 190751 l 193263 l 190770

All nano thread plug gauges are SCS-certified and the paid certificate is available on request.
