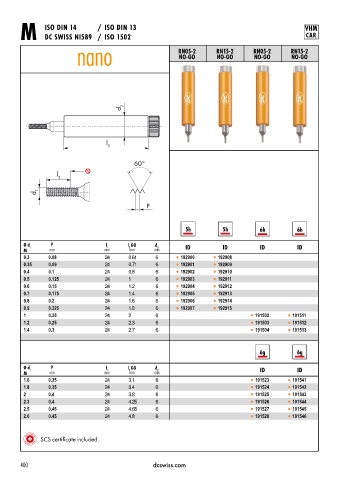

ISO DIN 14 / ISO DIN 13 VHM
M DC SWISS NI589 / ISO 1502 CAR

RN05-2 RN15-2 RN05-2 RN15-2
NO-GO NO-GO NO-GO NO-GO

d 2

l
1

l
2

d 1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
M mm mm mm mm
0.3 0.08 24 0.61 6 l 192900 l 192908
0.35 0.09 24 0.71 6 l 192901 l 192909
0.4 0.1 24 0.8 6 l 192902 l 192910
0.5 0.125 24 1 6 l 192903 l 192911
0.6 0.15 24 1.2 6 l 192904 l 192912
0.7 0.175 24 1.4 6 l 192905 l 192913
0.8 0.2 24 1.6 6 l 192906 l 192914
0.9 0.225 24 1.8 6 l 192907 l 192915
1 0.25 24 2 6 l 191502 l 191511
1.2 0.25 24 2.3 6 l 191503 l 191512
1.4 0.3 24 2.7 6 l 191504 l 191513

Ø d 1 P l 1 l GO d 2 ID ID
2
M mm mm mm mm
1.6 0.35 24 3.1 6 l 191523 l 191541
1.8 0.35 24 3.4 6 l 191524 l 191542
2 0.4 24 3.8 6 l 191525 l 191543
2.3 0.4 24 4.25 6 l 191526 l 191544
2.5 0.45 24 4.65 6 l 191527 l 191545
2.6 0.45 24 4.8 6 l 191528 l 191546

SCS certificate included.
