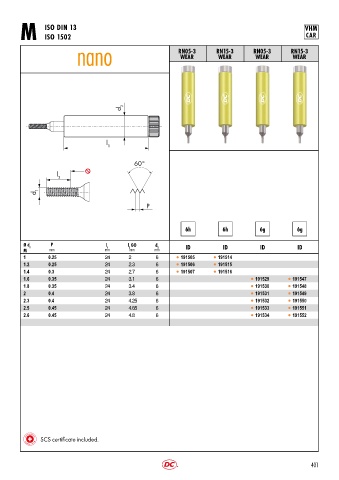

P. 404
ISO DIN 13 VHM
M ISO 1502 CAR
RN05-3 RN15-3 RN05-3 RN15-3
WEAR WEAR WEAR WEAR
d 2
l
1
l
2
d 1
P
Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
M mm mm mm mm
1 0.25 24 2 6 l 191505 l 191514
1.2 0.25 24 2.3 6 l 191506 l 191515
1.4 0.3 24 2.7 6 l 191507 l 191516
1.6 0.35 24 3.1 6 l 191529 l 191547
1.8 0.35 24 3.4 6 l 191530 l 191548
2 0.4 24 3.8 6 l 191531 l 191549
2.3 0.4 24 4.25 6 l 191532 l 191550
2.5 0.45 24 4.65 6 l 191533 l 191551
2.6 0.45 24 4.8 6 l 191534 l 191552
SCS certificate included.
