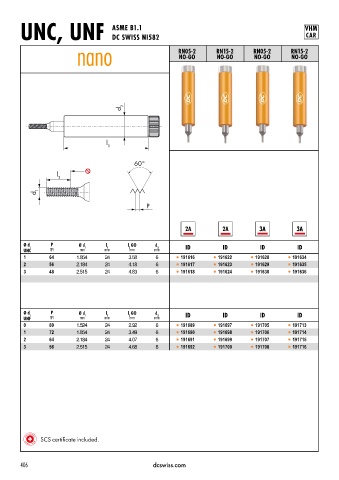

Page 409 - DC_SWISS(Catalogue_TM_ES-EN)

ASME B1.1 VHM
UNC, UNF DC SWISS NI582 CAR

RN05-2 RN15-2 RN05-2 RN15-2
NO-GO NO-GO NO-GO NO-GO

d 2

l
1

l
2

d 1

P

Ø d 1 P Ø d 1 l 1 l GO d 2 ID ID ID ID
2
UNC TPI mm mm mm mm
1 64 1.854 24 3.58 6 l 191616 l 191622 l 191628 l 191634
2 56 2.184 24 4.18 6 l 191617 l 191623 l 191629 l 191635
3 48 2.515 24 4.83 6 l 191618 l 191624 l 191630 l 191636

Ø d 1 P Ø d 1 l 1 l GO d 2 ID ID ID ID
2
UNF TPI mm mm mm mm
0 80 1.524 24 2.92 6 l 191689 l 191697 l 191705 l 191713
1 72 1.854 24 3.49 6 l 191690 l 191698 l 191706 l 191714
2 64 2.184 24 4.07 6 l 191691 l 191699 l 191707 l 191715
3 56 2.515 24 4.68 6 l 191692 l 191700 l 191708 l 191716

SCS certificate included.
