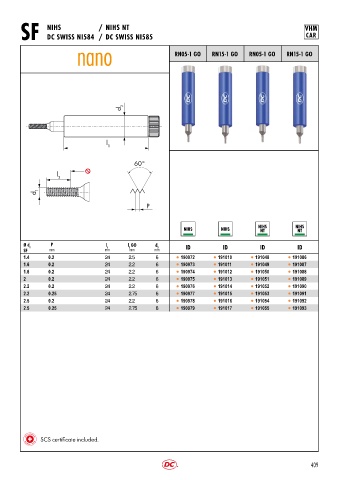

P. 412
NIHS / NIHS NT VHM
SF DC SWISS NI584 / DC SWISS NI585 CAR
RN05-1 GO RN15-1 GO RN05-1 GO RN15-1 GO
d 2
l
1
l
2
d 1
P
NIHS NIHS
NT NT
Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
SF mm mm mm mm
1.4 0.2 24 2.5 6 l 190972 l 191010 l 191048 l 191086
1.6 0.2 24 2.2 6 l 190973 l 191011 l 191049 l 191087
1.8 0.2 24 2.2 6 l 190974 l 191012 l 191050 l 191088
2 0.2 24 2.2 6 l 190975 l 191013 l 191051 l 191089
2.2 0.2 24 2.2 6 l 190976 l 191014 l 191052 l 191090
2.2 0.25 24 2.75 6 l 190977 l 191015 l 191053 l 191091
2.5 0.2 24 2.2 6 l 190978 l 191016 l 191054 l 191092
2.5 0.25 24 2.75 6 l 190979 l 191017 l 191055 l 191093
SCS certificate included.
